Mounting Systems
Factory-direct solar racking for Roof, Ground, and Carport projects. Includes Free Engineering Design.
RFQ inputs
Send quantity, destination port, certificate needs and any brand/spec preference.
Quote output
Receive SKU mapping, lead time notes, packaging logic and export-ready pricing.
Before shipment
QC photos, inspection records and loading documents can be checked before release.
Select Your Application

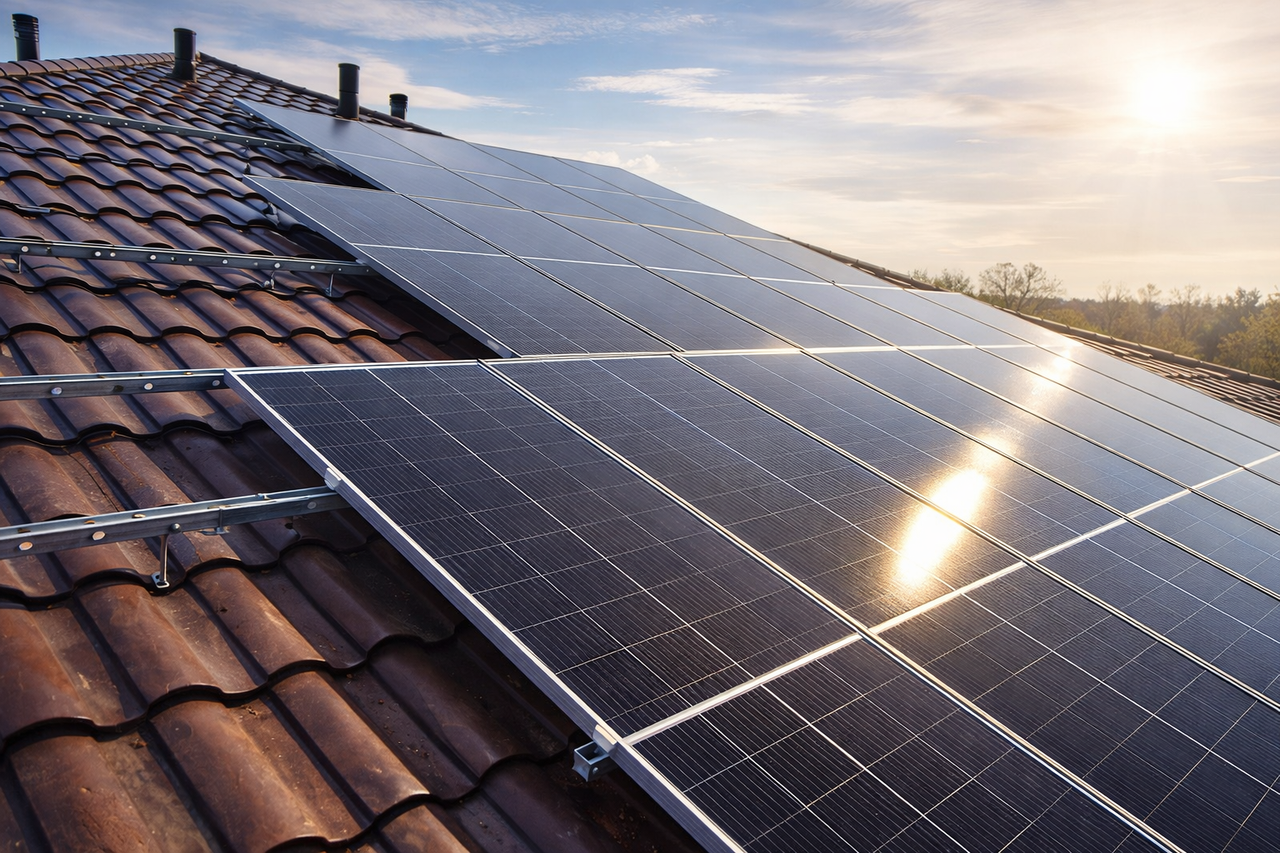

Roof Mounting
Solutions for pitched tile, metal, and flat concrete roofs.
View Series

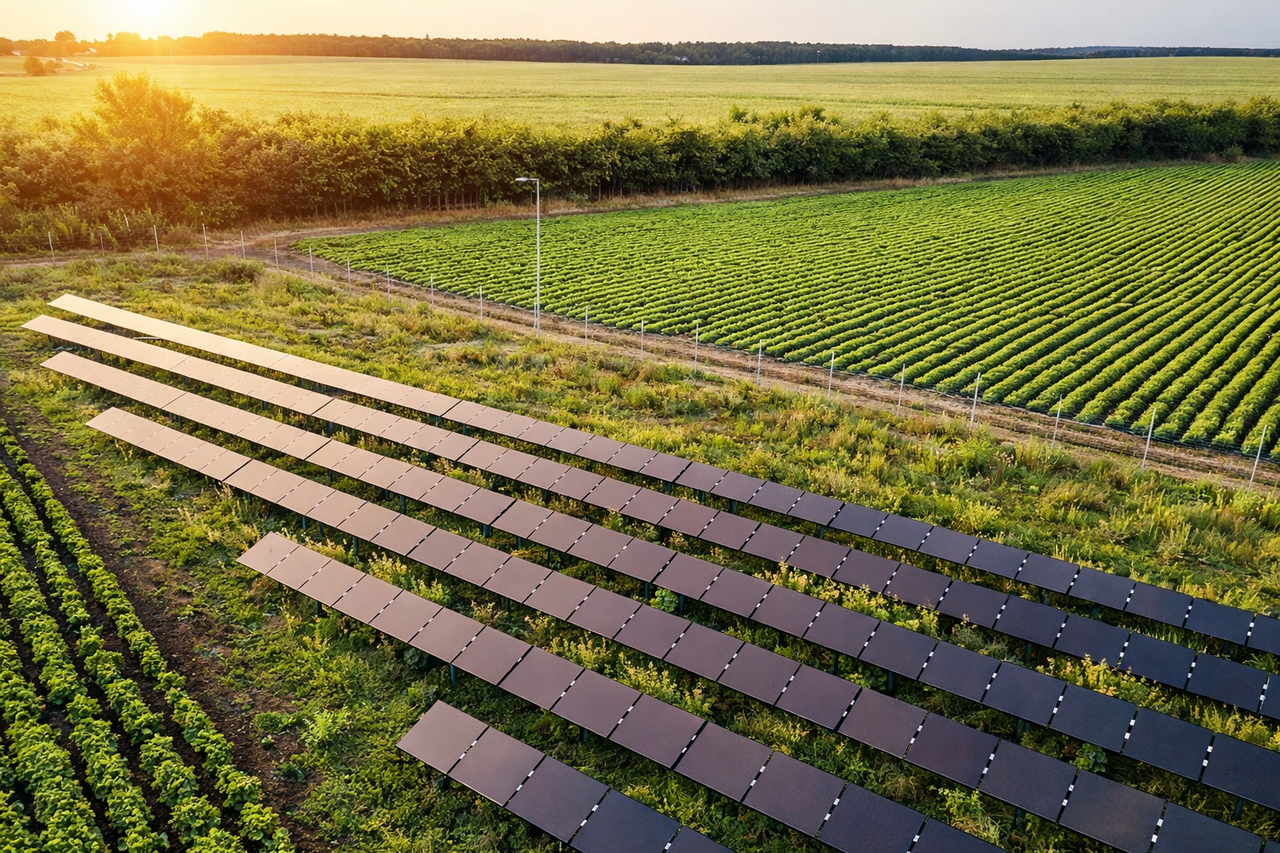

Ground Mounting
Scalable structures for utility and commercial ground projects.
View Series

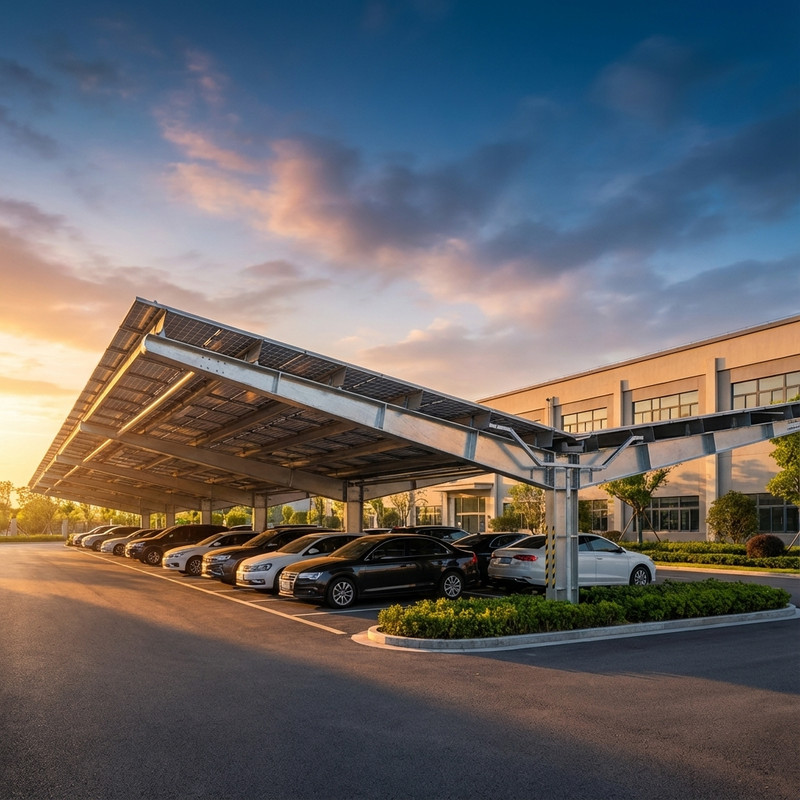

Carports
Waterproof solar parking structures for commercial use.
View Series

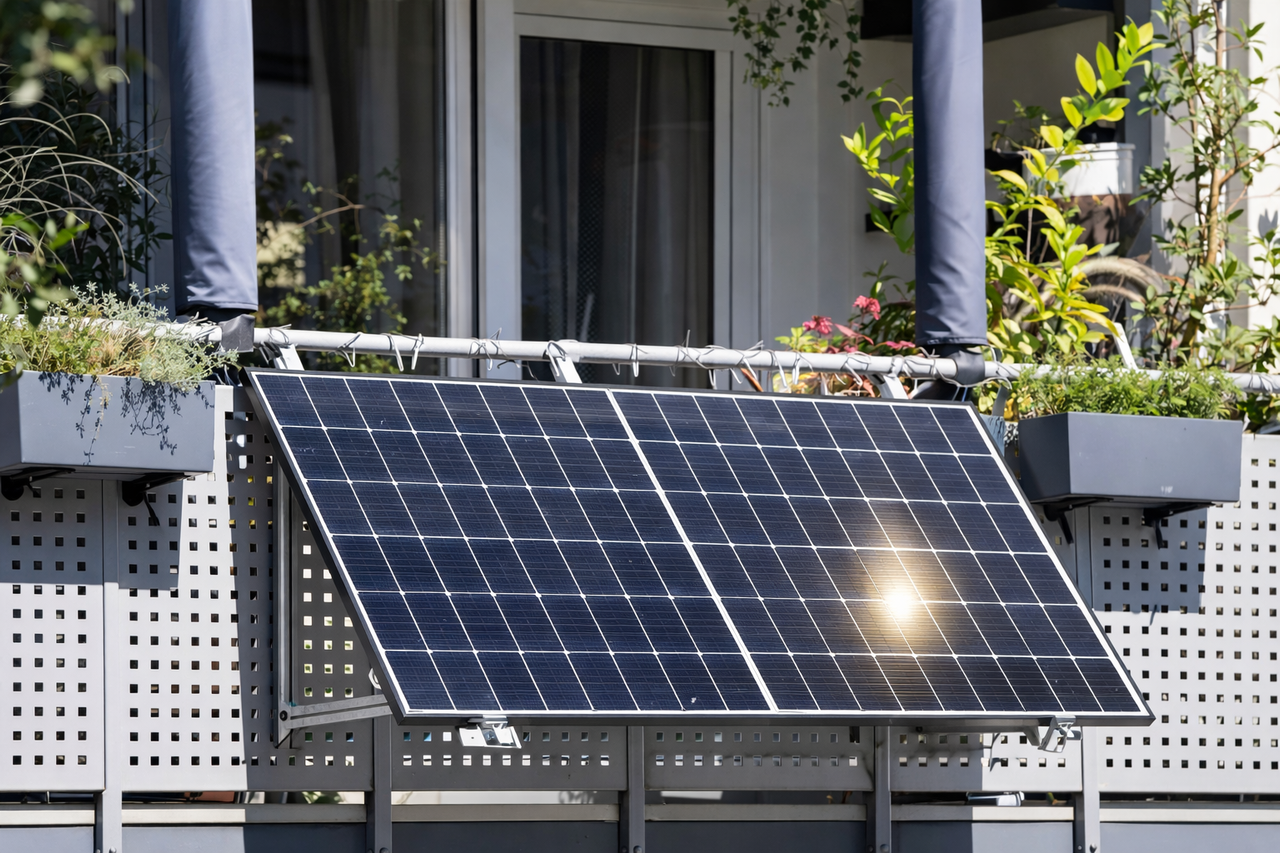

Balcony Solar
Retail-ready hook kits for apartments and DIY.
View SeriesMounting Systems Product Families
Each card is one product-family page. Variant SKUs and specification choices are shown inside the product detail page.
Universal Tile Hook System
Our flagship tile roof solution featuring the OS-TH-01 Double Adjustable Hook. Compatible with Panti...
Trapezoidal Mini-Rail System
The ultimate cost-saver for trapezoidal metal roofs. By replacing long rails with 385mm short segmen...
Carbon Steel Ballast System
Robust split-type ballast system made of Q235B Hot-Dip Galvanized Steel. Designed for flat concrete ...

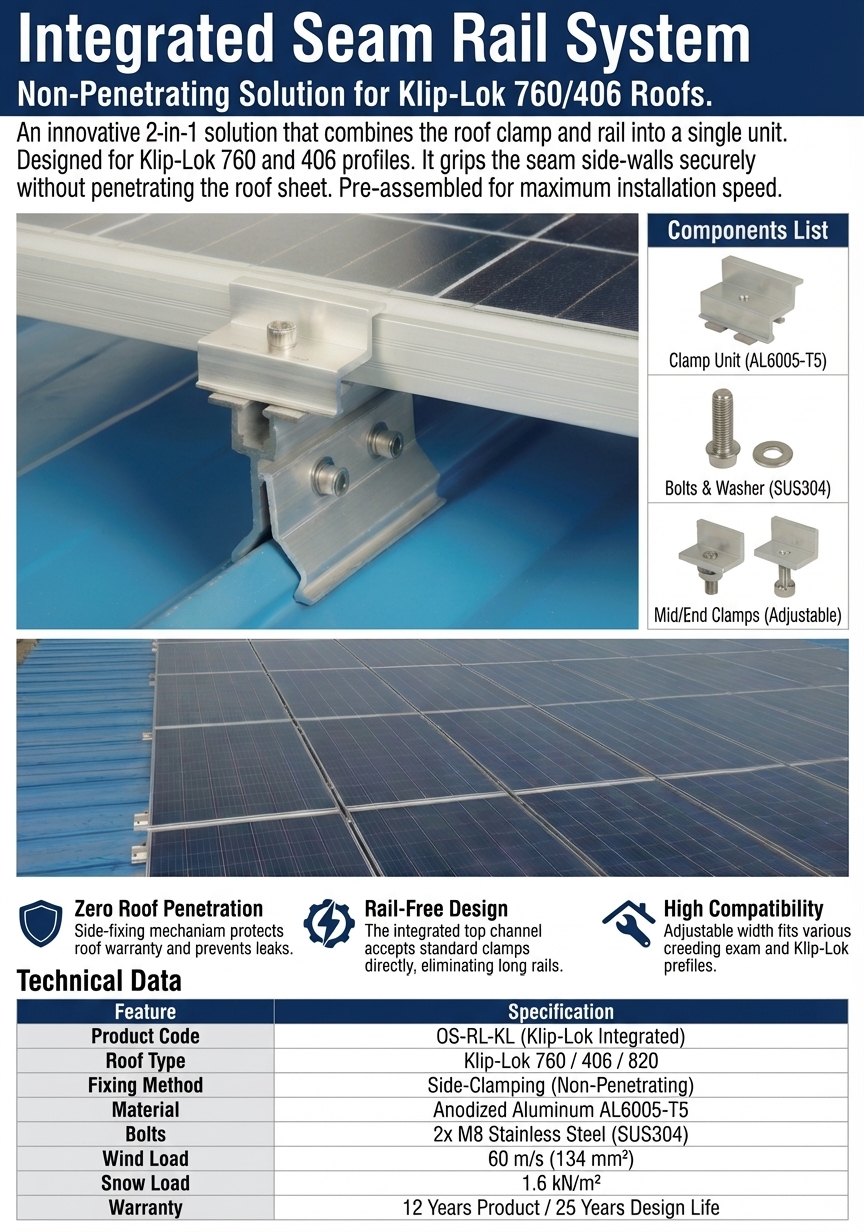

Integrated Seam Rail System
An innovative 2-in-1 solution that combines the roof clamp and rail into a single unit. Designed for...
Non-Penetrating Seam Clamps
A universal portfolio of seam clamps for Standing Seam, Round Bulb, and specialized metal roofs.
C-Steel Ground Mounting System
Heavy-duty ground mounting structure utilizing Hot-Dip Galvanized or ZM275 coated C-Steel. Designed ...

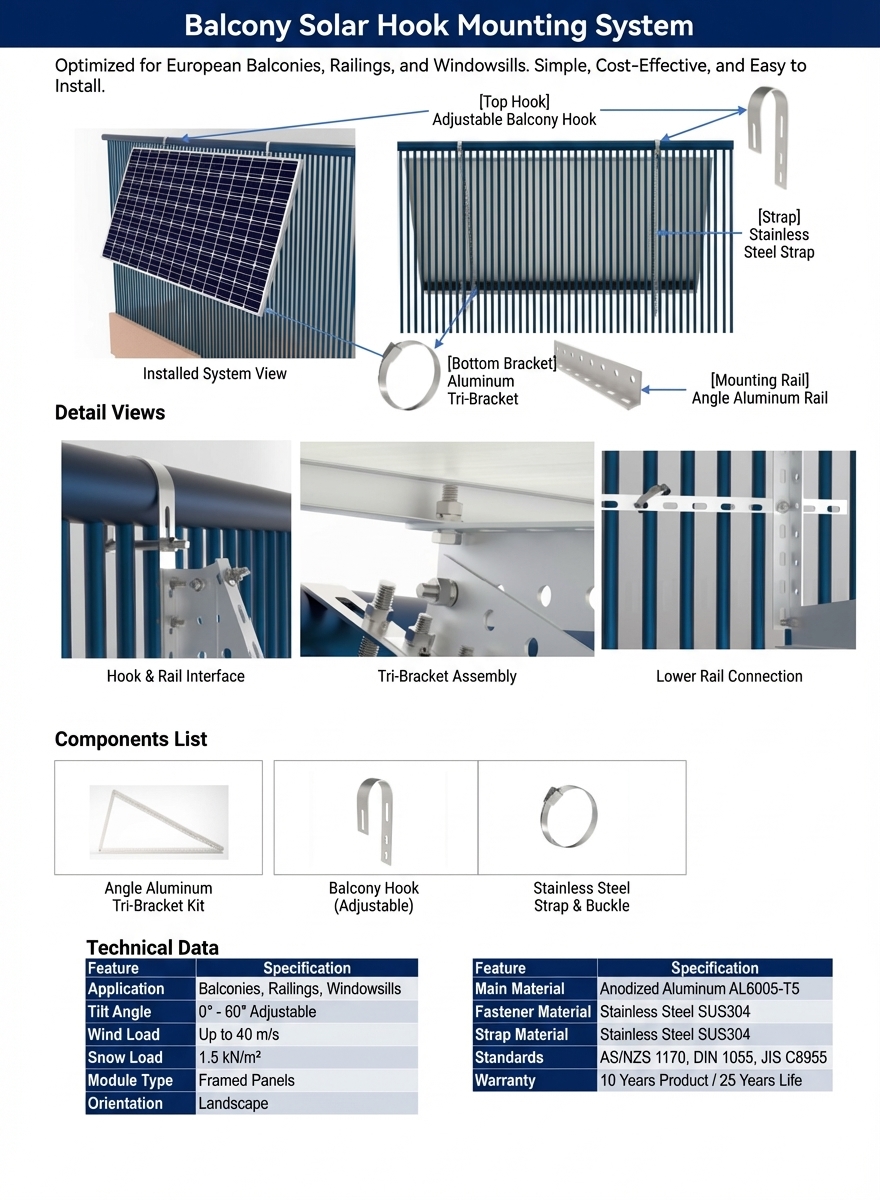

Balcony Solar Hook Kit
A complete DIY kit for balcony solar installations. Includes adjustable stainless steel hooks and st...
Waterproof BIPV Carport System
A premium aluminum carport system featuring a structural 'W-Drain' gutter design. It channels rainwa...
How buyers should specify a mounting system before RFQ
Solar mounting is the structural interface between the PV module and the roof, ground, carport or balcony. It defines the load path, waterproofing method, corrosion exposure, installation speed and packing format for the whole project.
The right family depends first on the site condition, then on wind and snow load, module size, roof or foundation type, material choice and installer workflow. A strong RFQ gives enough context for engineering review, not only a quantity list.
- Start with the installation surface: tile roof, trapezoidal metal roof, Klip-Lok roof, flat roof, driven pile, concrete foundation, carport column or balcony rail.
- Confirm module dimensions, orientation, array layout and design wind/snow loads before final rail span, clamp spacing and bill of materials.
- Select material by environment: anodized aluminum for lightweight corrosion resistance, HDG or Zn-Al-Mg steel for larger ground arrays, and SUS304/SUS316 for hooks and fasteners.
- Check rail length, pre-assembly level and container utilization early, because mounting systems can be freight-sensitive.
- Wrong roof clamp or hook choice can create leakage even if the rail and module clamp are correct.
- Generic span tables are risky in high-wind, cyclone, snow or edge-zone conditions without project-specific load review.
- Long rails can increase freight cost and site handling time; mini-rail or pre-cut packing may be better for some C&I rooftops.
- Mixed metals, coastal exposure and unverified fastener grade can create corrosion problems before the module service life ends.
Open the right family page with the right questions.
Roof Mounting
Connects PV modules to tile, metal or flat roofs while managing waterproofing, attachment strength and rail span.
Use for residential and C&I rooftops where roof profile, water sealing and fast installation are the main constraints.
Ground Mounting
Transfers array loads into driven piles, screw piles or concrete foundations for open-field solar projects.
Use for utility and commercial ground arrays where soil condition, row spacing and steel structure design are key.
Carports
Combines parking shade, PV mounting, waterproof drainage and steel structure design into one canopy system.
Use for parking lots, EV-ready sites and projects where weather shelter is part of the value.
Balcony Solar
Provides small-format hook and bracket kits for apartment balcony solar installations.
Use for retail-ready balcony kits where packaging, repeatability and simple installation matter.
Roof Solar Mounting Guide
Tile hooks, seam clamps, flat roof ballast and rooftop selection notes.
Ground Solar Mounting Guide
Driven pile, screw pile, concrete ballast and ground-array structure choices.
Wind Load Guide
Wind region, edge-zone and structural calculation context.
Corrosion Guide
HDG, Zn-Al-Mg, anodized aluminum and stainless material choices.
48h Design Turnaround
Fast layout review and quoting.
12-Year Warranty
Structural warranty for mounting components.
Global Logistics
Consolidated container shipments.
Complimentary Engineering Support
We don't just supply hardware; we provide the technical design to help you win the bid.
Layout Design
AutoCAD arrays.
Static Analysis
Wind/Snow loads.
3D Rendering
Sales visuals.
BOM & Sizing
No shortages.
Detailed Specifications
Why OmniSol Mounting Systems?
OmniSol Global is a solar BOS sourcing integrator and supply chain partner for solar mounting structures. Through our audited partner factories, we coordinate factory-direct supply of AL6005-T5 Aluminum and Hot-Dip Galvanized Steel racking. We serve EPCs, distributors, and installers worldwide.
✅ Free Engineering Design
We provide custom layout drawings (CAD) and static calculations (Wind/Snow load) based on AS/NZS 1170 and Eurocode standards.
✅ Complete Product Portfolio
Metal Roofs: Klip-Lok clamps & Mini-Rail systems.
Tile Roofs: Universal adjustable hooks.
Ground Mounts: Carbon Steel Tripods & Aluminum structures.
Waterproof Carports: BIPV structures.
✅ 12-Year Warranty
All components are pre-assembled to reduce installation time by 30%.
Mounting Systems sourcing questions
Practical checks buyers usually confirm before quoting, sampling or consolidating a shipment.
How do buyers request a quote for Mounting Systems?
Send the product list or BOM, quantities, destination country or port, required standards, and target delivery date. OmniSol reviews SKU matching, lead time, packing, and export requirements before quotation.
Can Mounting Systems be shipped with other solar BOS components?
Yes. OmniSol can review mixed-container feasibility for mounting, cables, connectors, protection devices, combiner boxes, distribution boards, and selected storage accessories.
When are certificates and market documents confirmed?
Document availability is checked at RFQ and order confirmation stage against the selected SKU, supplier, model, and target market requirements.
