PV Cables

PV DC cables and grounding cables

Send Category RFQ Review QC Documents

RFQ inputs

Send quantity, destination port, certificate needs and any brand/spec preference.

Quote output

Receive SKU mapping, lead time notes, packaging logic and export-ready pricing.

Before shipment

QC photos, inspection records and loading documents can be checked before release.

Product families

PV Cables Product Families

Each card is one product-family page. Variant SKUs and specification choices are shown inside the product detail page.

Send BOM
62930 IEC131 Double-Core Solar PV Cable
4 variants

62930 IEC131 Double-Core Solar PV Cable

62930 IEC131 Double-Core Solar PV Cable is organized as one OmniSol product-family page with 4 selec...

Variant SKU Count: 4
Supplier: PNT
Supplier Model: 62930 IEC131-DC
View Family
62930 IEC131 Solar PV Cable
8 variants

62930 IEC131 Solar PV Cable

62930 IEC131 Solar PV Cable is organized as one OmniSol product-family page with 8 selectable varian...

Variant SKU Count: 8
Supplier: PNT
Supplier Model: 62930 IEC131
View Family
Armored H1Z2Z2-K Solar PV Cable
8 variants

Armored H1Z2Z2-K Solar PV Cable

Armored H1Z2Z2-K Solar PV Cable is organized as one OmniSol product-family page with 8 selectable va...

Variant SKU Count: 8
Supplier: PNT
Supplier Model: H1Z2Z2-K-ARMORED
View Family
BVR Grounding Cable
7 variants

BVR Grounding Cable

BVR Grounding Cable is organized as one OmniSol product-family page with 7 selectable variant SKUs. ...

Variant SKU Count: 7
Supplier: PNT
Supplier Model: BVR
View Family

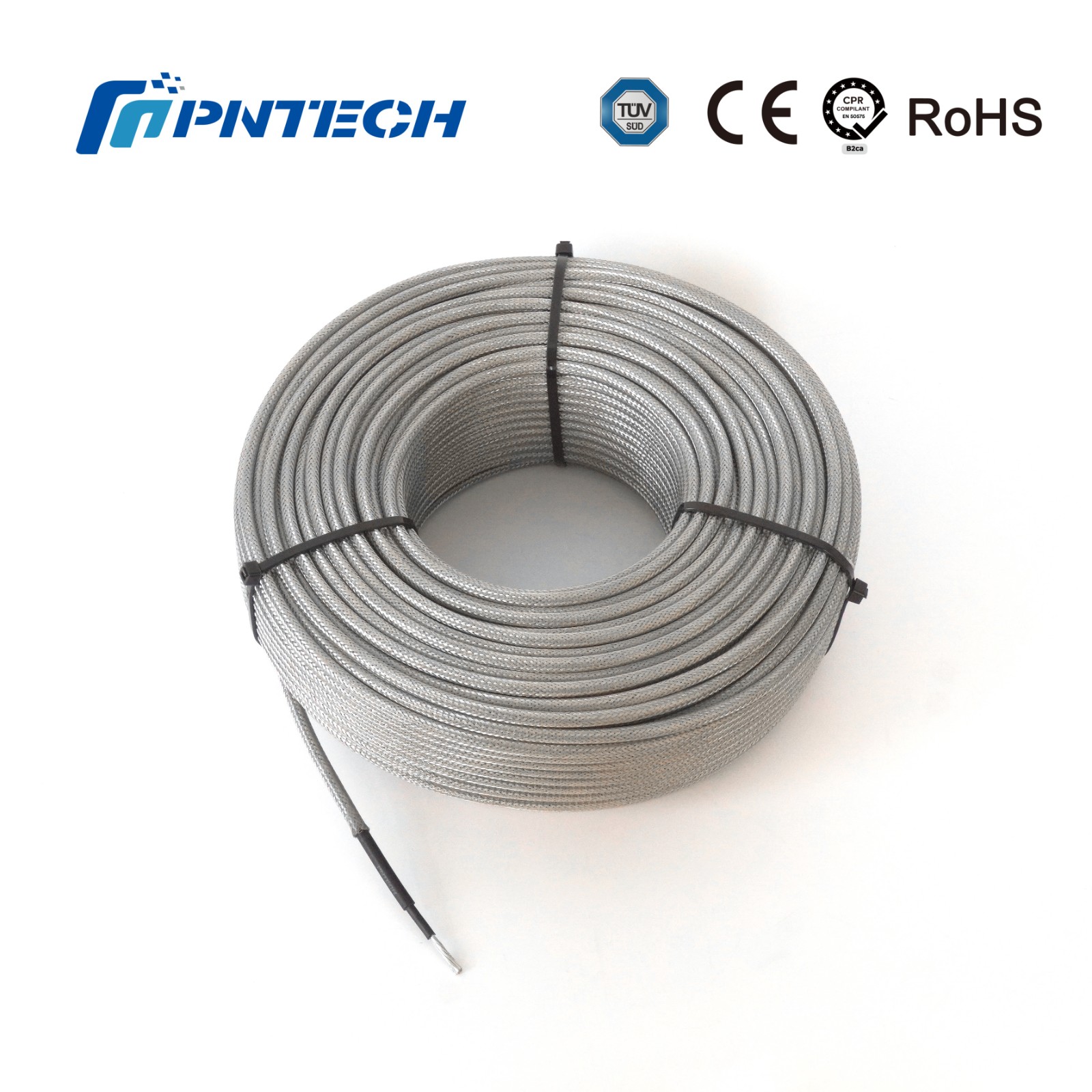

GF-WDZCEER23 Armored Solar PV Cable
4 variants

GF-WDZCEER23 Armored Solar PV Cable

GF-WDZCEER23 Armored Solar PV Cable is organized as one OmniSol product-family page with 4 selectabl...

Variant SKU Count: 4
Supplier: PNT
Supplier Model: GF-WDZCEER23
View Family

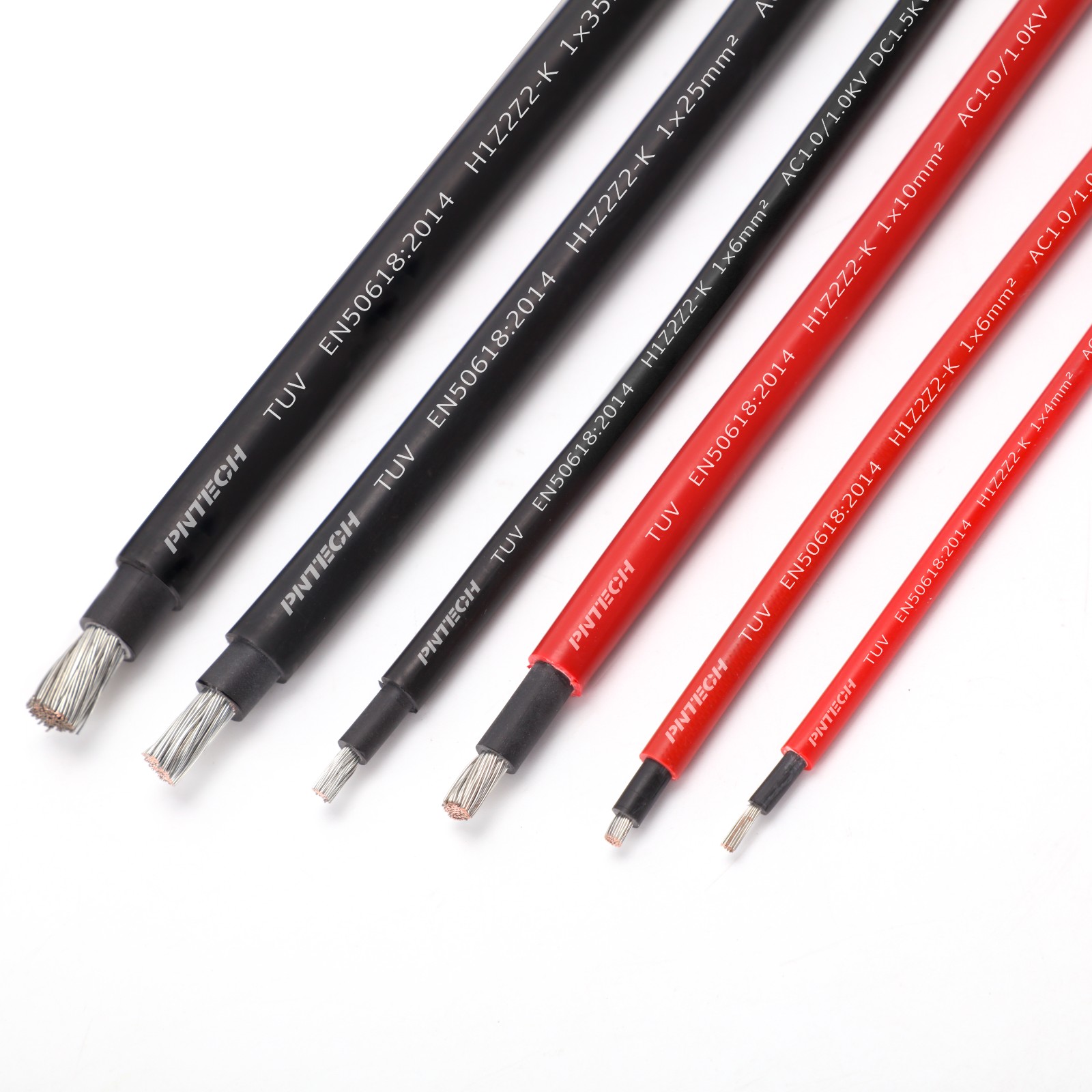

H1Z2Z2-K Solar PV DC Cable
8 variants

H1Z2Z2-K Solar PV DC Cable

H1Z2Z2-K Solar PV DC Cable is organized as one OmniSol product-family page with 8 selectable variant...

Variant SKU Count: 8
Supplier: PNT
Supplier Model: H1Z2Z2-K
View Family
PV Wire UL Solar Cable
8 variants

PV Wire UL Solar Cable

PV Wire UL Solar Cable is organized as one OmniSol product-family page with 8 selectable variant SKU...

Variant SKU Count: 8
Supplier: PNT
Supplier Model: PV wire
View Family
PV1-F Solar PV DC Cable
8 variants

PV1-F Solar PV DC Cable

PV1-F Solar PV DC Cable is organized as one OmniSol product-family page with 8 selectable variant SK...

Variant SKU Count: 8
Supplier: PNT
Supplier Model: PV1-F
View Family
PV1500-SR Marine Solar PV Cable
8 variants

PV1500-SR Marine Solar PV Cable

PV1500-SR Marine Solar PV Cable is organized as one OmniSol product-family page with 8 selectable va...

Variant SKU Count: 8
Supplier: PNT
Supplier Model: PV1500-SR
View Family

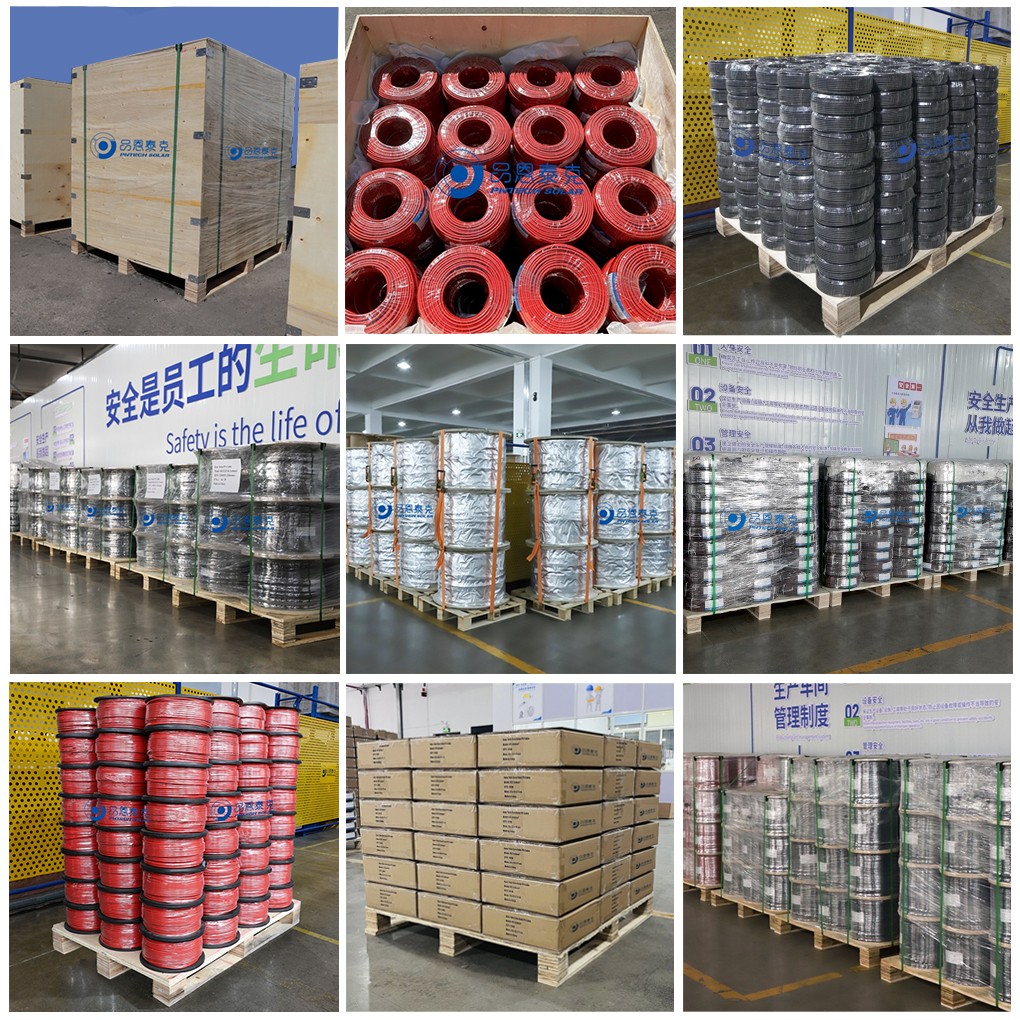

PV1500DC-AL Aluminum Alloy Solar Cable
3 variants

PV1500DC-AL Aluminum Alloy Solar Cable

PV1500DC-AL Aluminum Alloy Solar Cable is organized as one OmniSol product-family page with 3 select...

Variant SKU Count: 3
Supplier: PNT
Supplier Model: PV1500DC-AL
View Family
Cable sourcing map

How buyers should specify PV cable before RFQ

PV cable selection should start from system voltage, conductor size, installation route and target standard. The same project may need different cable sizes for module strings, longer home runs and combiner-to-inverter sections.

For sourcing, buyers should confirm H1Z2Z2-K, PV1-F, IEC 62930, EN 50618 or UL PV wire requirements before comparing price. Marking, reel length, color and certificate availability matter as much as nominal cross-section.

Typical system flow
1PV module string
2Connector interface
3DC cable run
4Combiner or inverter input
5Grounding / labeling
6Export packing
Selection logic
  • Confirm whether the project uses 1000V or 1500V DC architecture before selecting cable rating.
  • Choose 4mm2, 6mm2, 10mm2 or larger cable by current, run length, temperature and voltage-drop target.
  • Specify red/black color, reel length, cable marking and carton or wooden reel packing.
  • Check required standards such as EN 50618, IEC 62930, TUV or UL 4703 before order confirmation.
Buyer risk checks
  • Buying by size only can miss the required cable standard, jacket marking or CPR/fire class.
  • Long cable runs may need larger cross-section even when the current rating seems acceptable.
  • Unclear reel length and labeling can slow installation and warehouse picking.
  • Connector compatibility should be reviewed together with cable diameter and conductor size.
RFQ fields to prepare
Cable standardVoltage ratingConductor sizeColorReel lengthTotal metersCertificate needDestination market
Send this BOM
Family decision notes

Open the right family page with the right questions.

PV Cable

Covers H1Z2Z2-K, PV1-F and related PV DC cable families with variant choices for size, color and length.

Open this family when the RFQ is based on cable standard, cross-section, reel length or voltage rating.

Related buyer guides

PV Cable Sizing Guide

How to compare 4mm2, 6mm2 and 10mm2 cable by voltage drop and project layout.

H1Z2Z2-K vs PV1-F

A practical comparison for buyers checking European PV cable specifications.

BOS 1500V Selection Guide

How cable rating connects to connectors, protection devices and combiner boxes.

48h BOM Review

SKU matching, lead time notes and quotation.

Certificate Check

Standards and document availability reviewed at RFQ stage.

Mixed Container Export

BOS components planned for consolidated shipment.

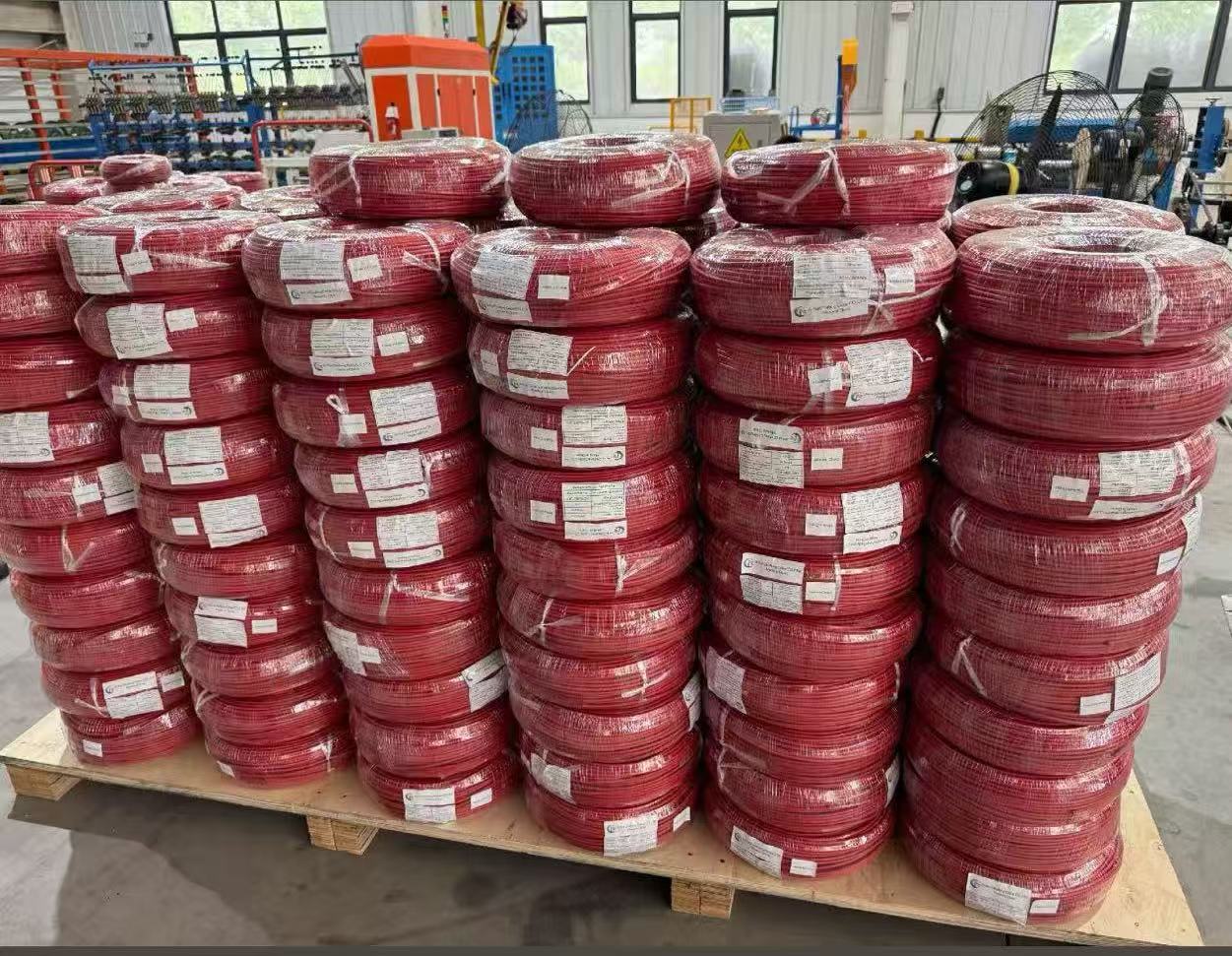

PV Cables components
SPEC REVIEW
Export packing inspection
EXPORT PACKING

BOS Sourcing Support

We help buyers translate a project BOM into compliant, export-ready solar components with clear documentation.

Certificate Review

IEC, EN, UL or market-specific checks.

SKU Matching

Map project specs to available catalog items.

Lead Time Check

Stock, MOQ and production timing notes.

Packing Plan

Carton, pallet and mixed-container planning.

Send Sourcing RFQ

Detailed Specifications

PV DC cables and grounding cables

Buyer FAQ

PV Cables sourcing questions

Practical checks buyers usually confirm before quoting, sampling or consolidating a shipment.

Should I choose 4mm2 or 6mm2 solar cable?

It depends on current, cable run length, temperature and voltage-drop target. Many rooftop strings use 4mm2 or 6mm2, while longer runs may need 10mm2 or larger cable after calculation.

Can PV cable be quoted by product family instead of every SKU page?

Yes. OmniSol keeps one product family page and lists conductor size, color, length and voltage variants inside the page for RFQ selection.

How do buyers request a quote for PV Cables?

Send the product list or BOM, quantities, destination country or port, required standards, and target delivery date. OmniSol reviews SKU matching, lead time, packing, and export requirements before quotation.

Can PV Cables be shipped with other solar BOS components?

Yes. OmniSol can review mixed-container feasibility for mounting, cables, connectors, protection devices, combiner boxes, distribution boards, and selected storage accessories.

When are certificates and market documents confirmed?

Document availability is checked at RFQ and order confirmation stage against the selected SKU, supplier, model, and target market requirements.
