Universal Roof Mounting Systems
The most complete interface library in the industry. Over 50+ molds for Metal, Tile, and Flat roofs.
Metal Roof Solutions
Non-Penetrating Clamps & Direct-Fix Mini-Rails
Non-Penetrating (Clamps)
100% WaterproofClamp directly to the seam. 100% Waterproof. No Rails Needed options.

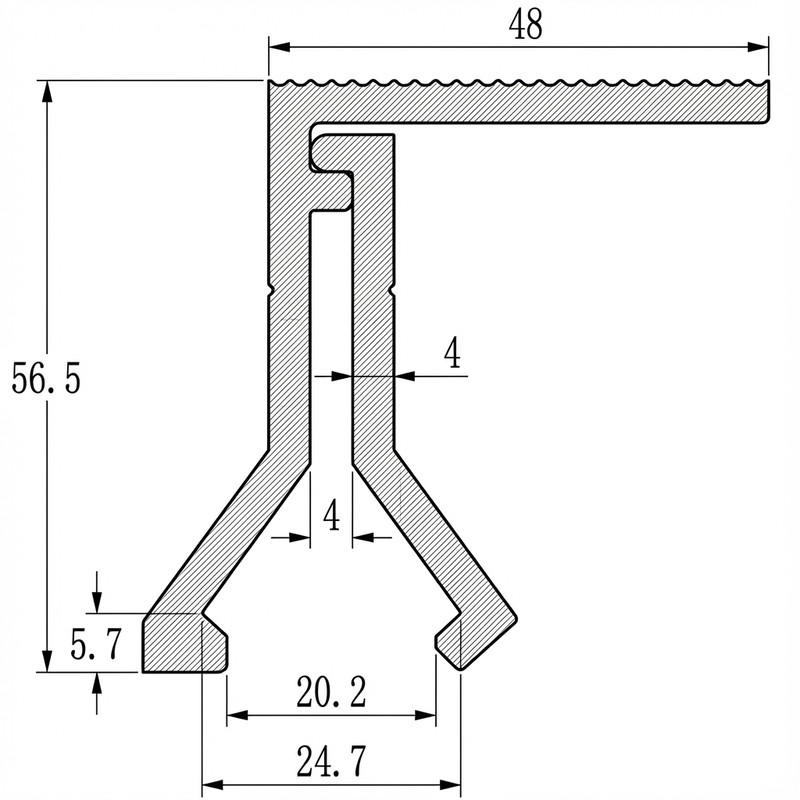

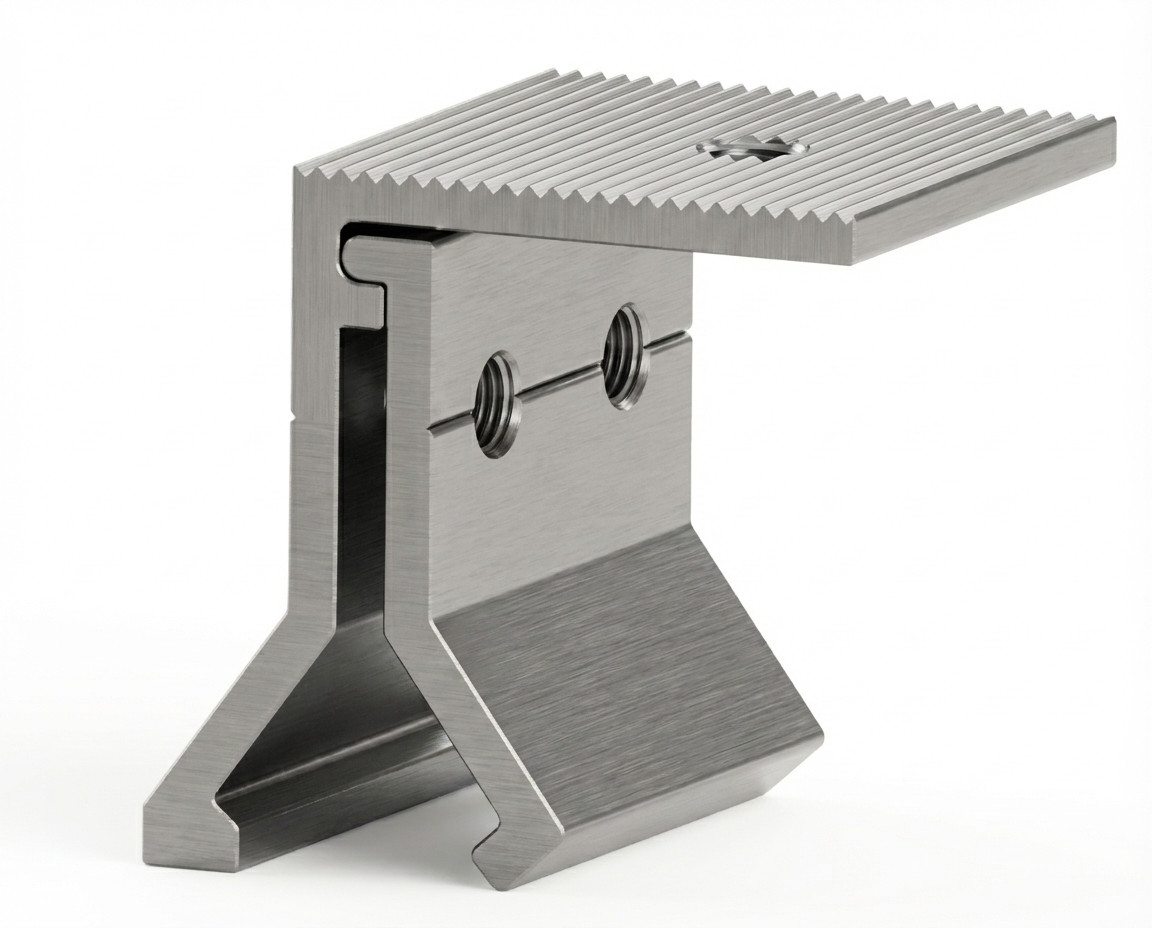

OS-KL-01-L50
Klip-Lok Interface
OS-KL-23-L50

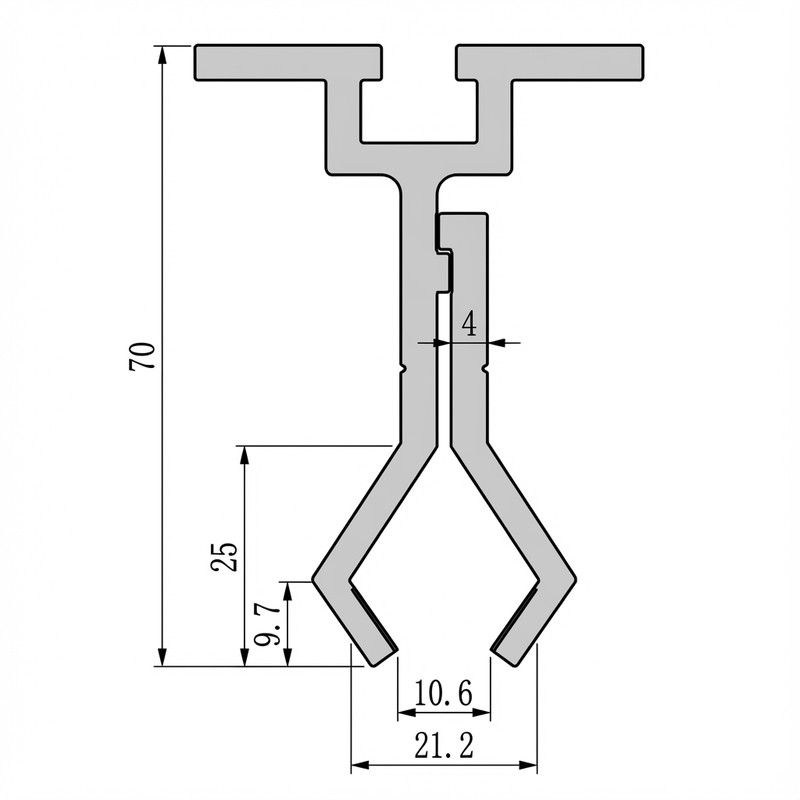

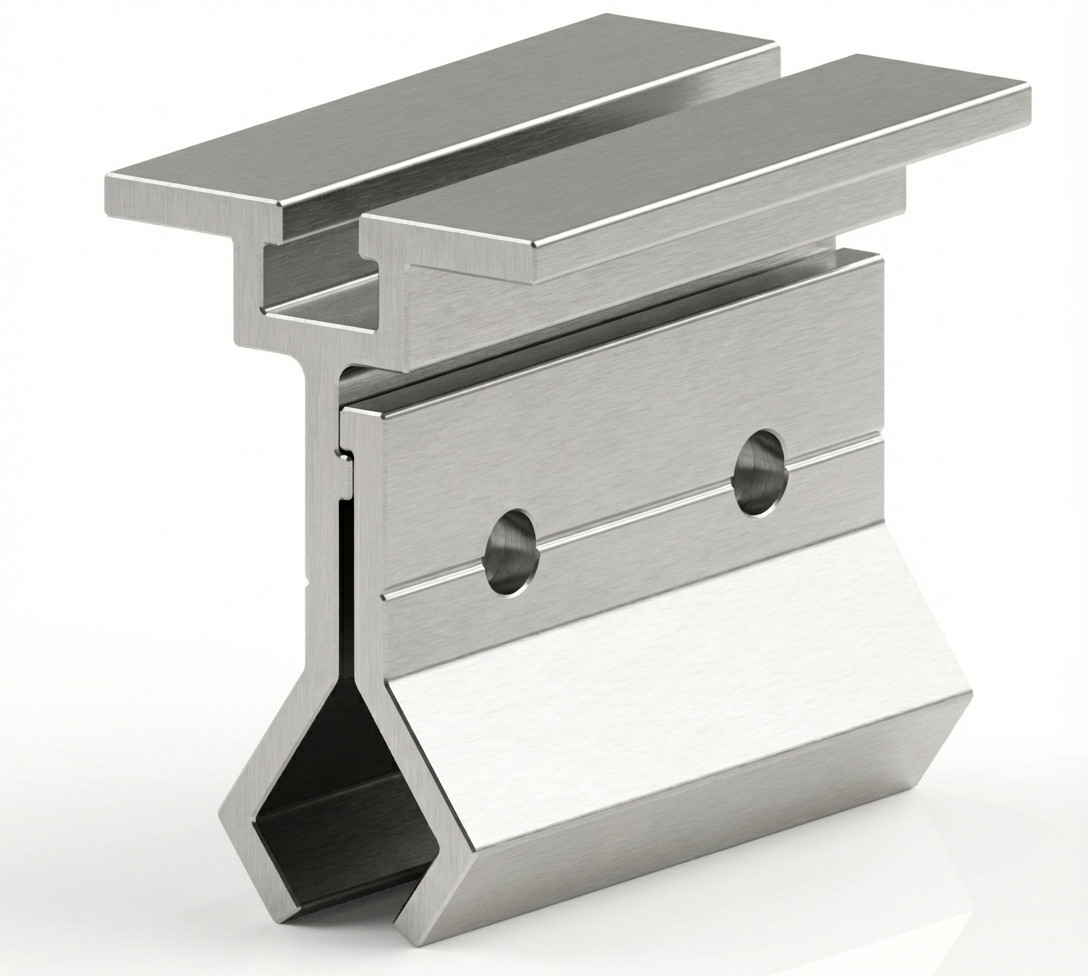

Integrated Rail-Clamp
OS-KL-02-L60

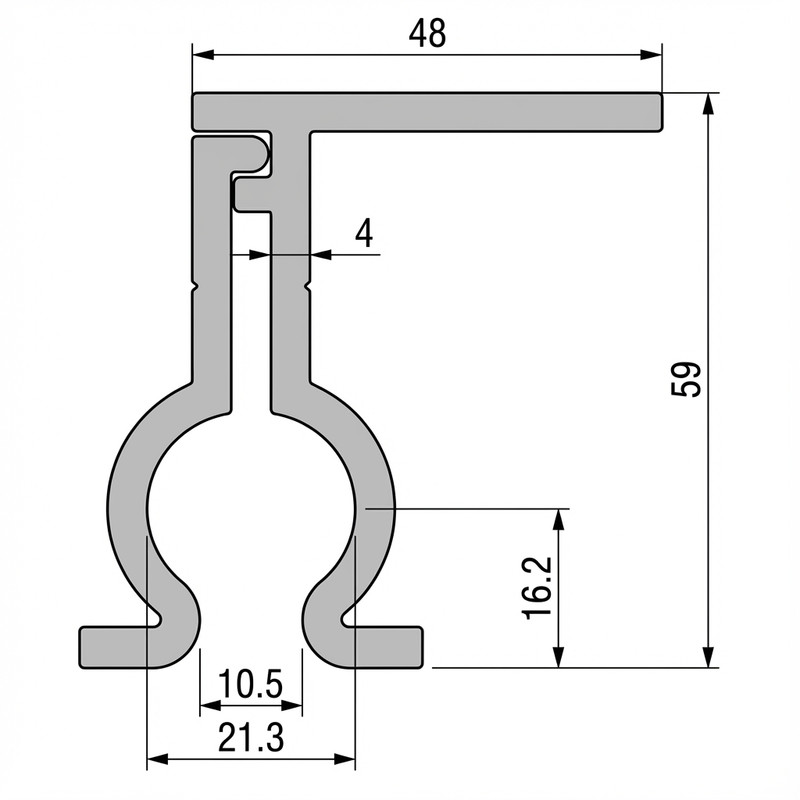

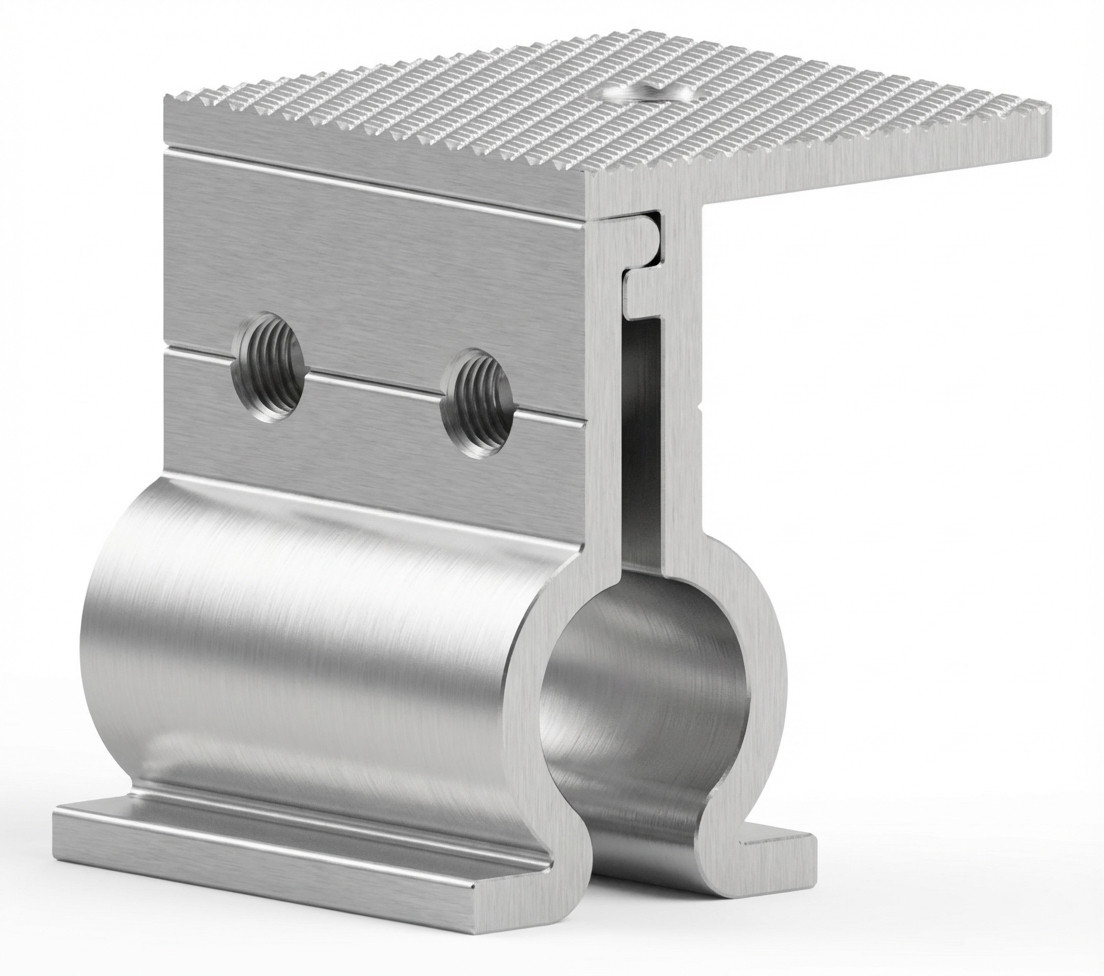

Round Bulb Clamp

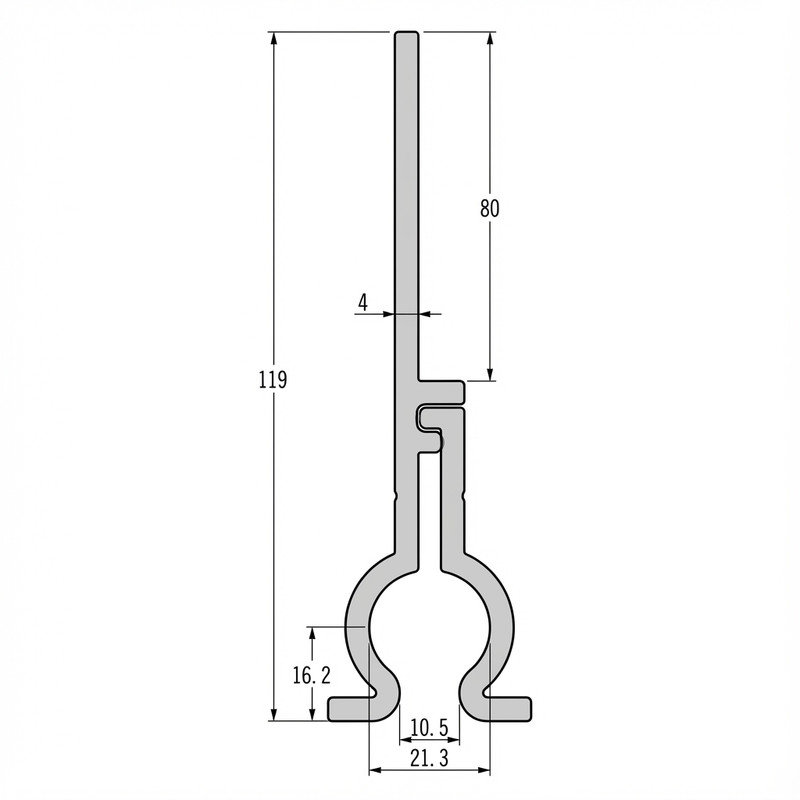

OS-KL-03-L50

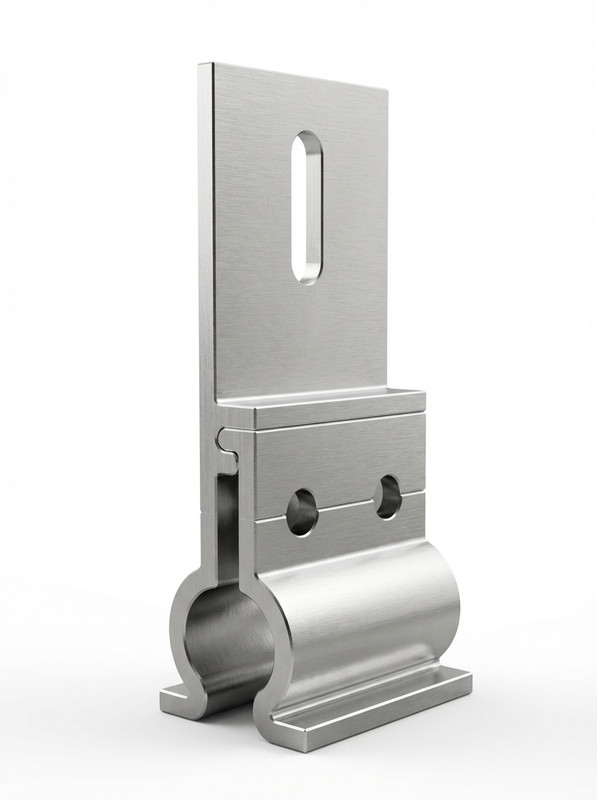

High Profile Clamp

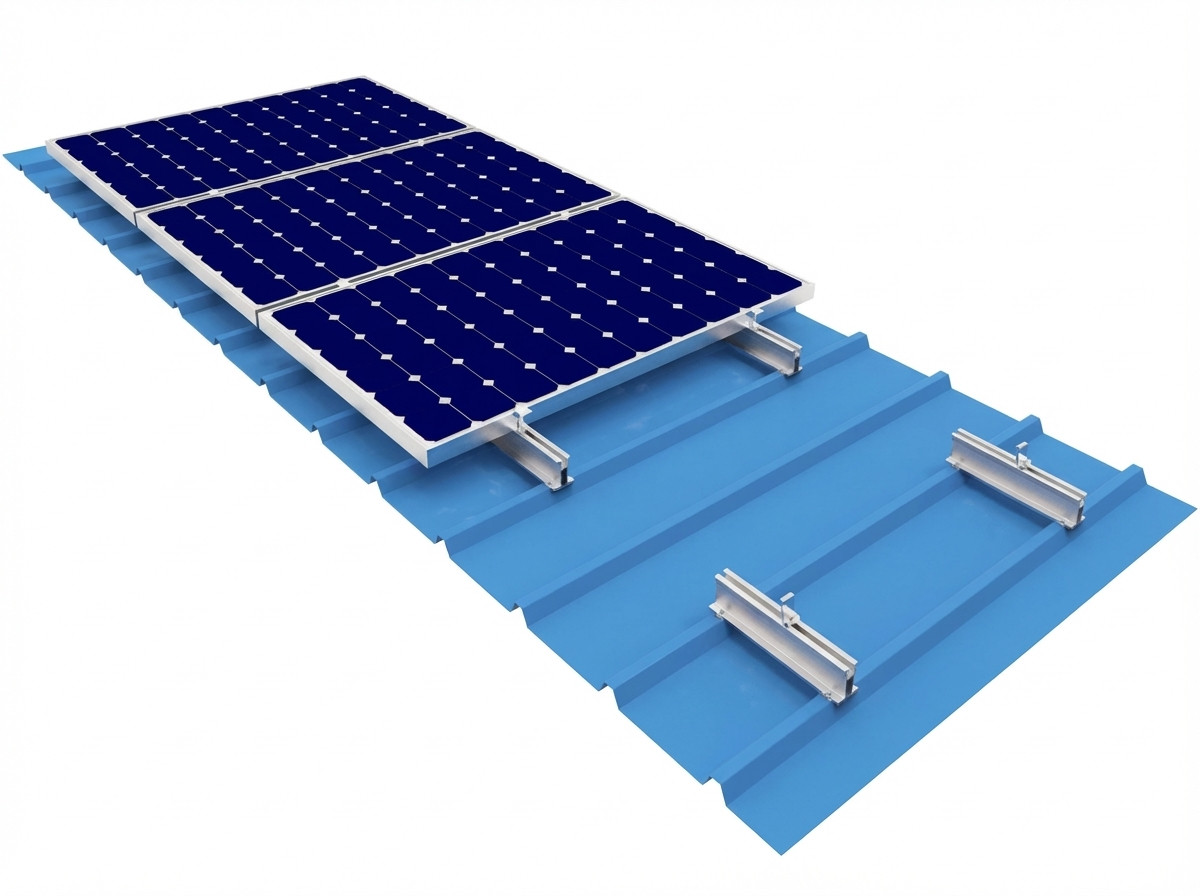

Penetrating / Mini-Rail
Cost-effective direct fixing for Trapezoidal roofs. 40% Logistics Saving.
- Rail-Less Design
- EPDM Waterproofing
- Rapid Install
Tile Roof Solutions
Hooks for every tile profile: Spanish, Flat, and Slate.

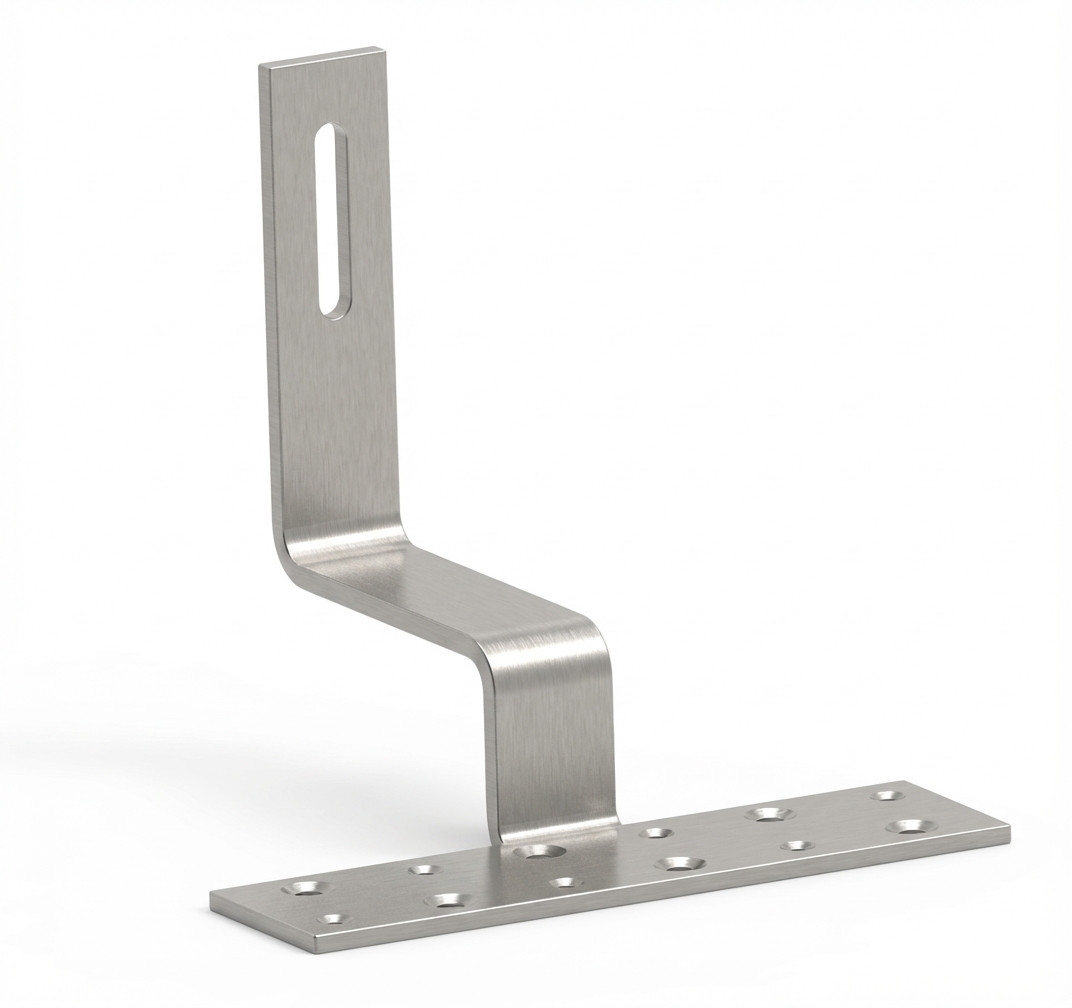

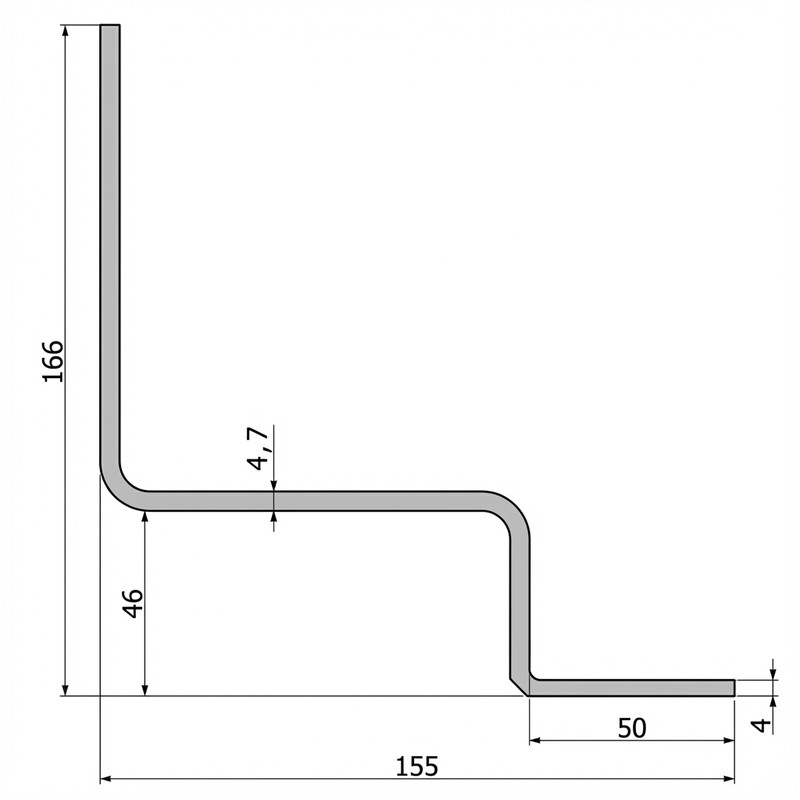

Universal Adjustable
Double-adjustable for uneven roofs.

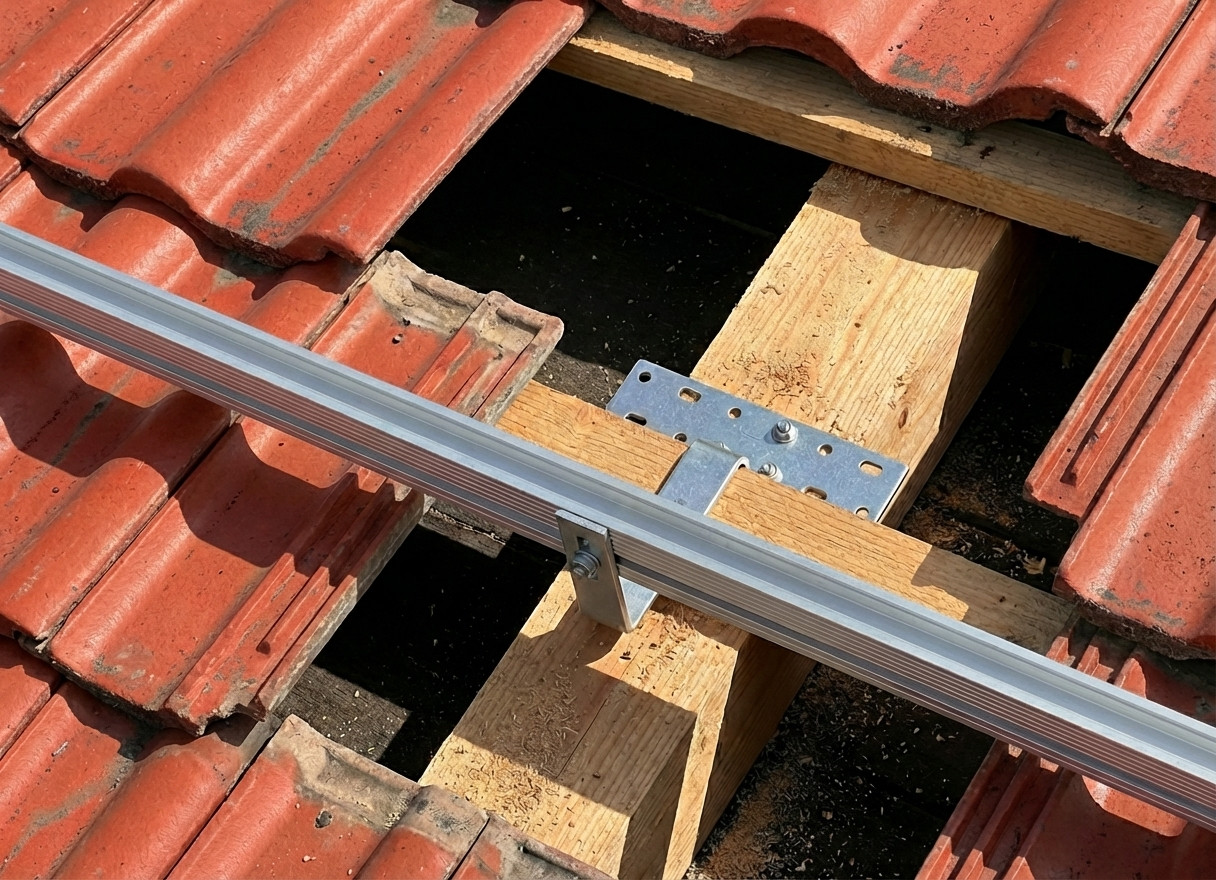

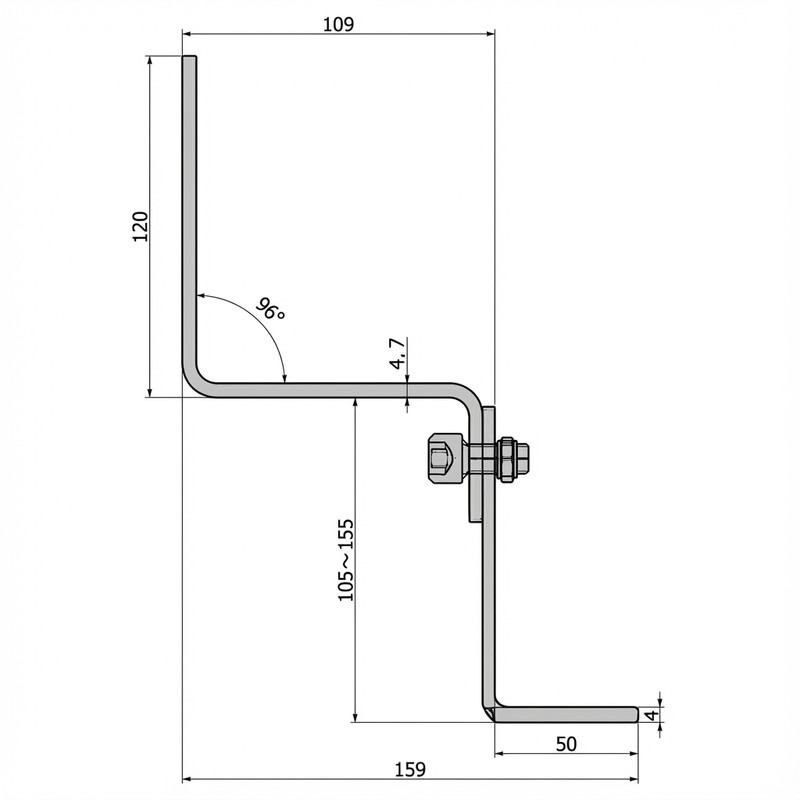

High Profile / Spanish
Extra clearance arm for curved tiles.

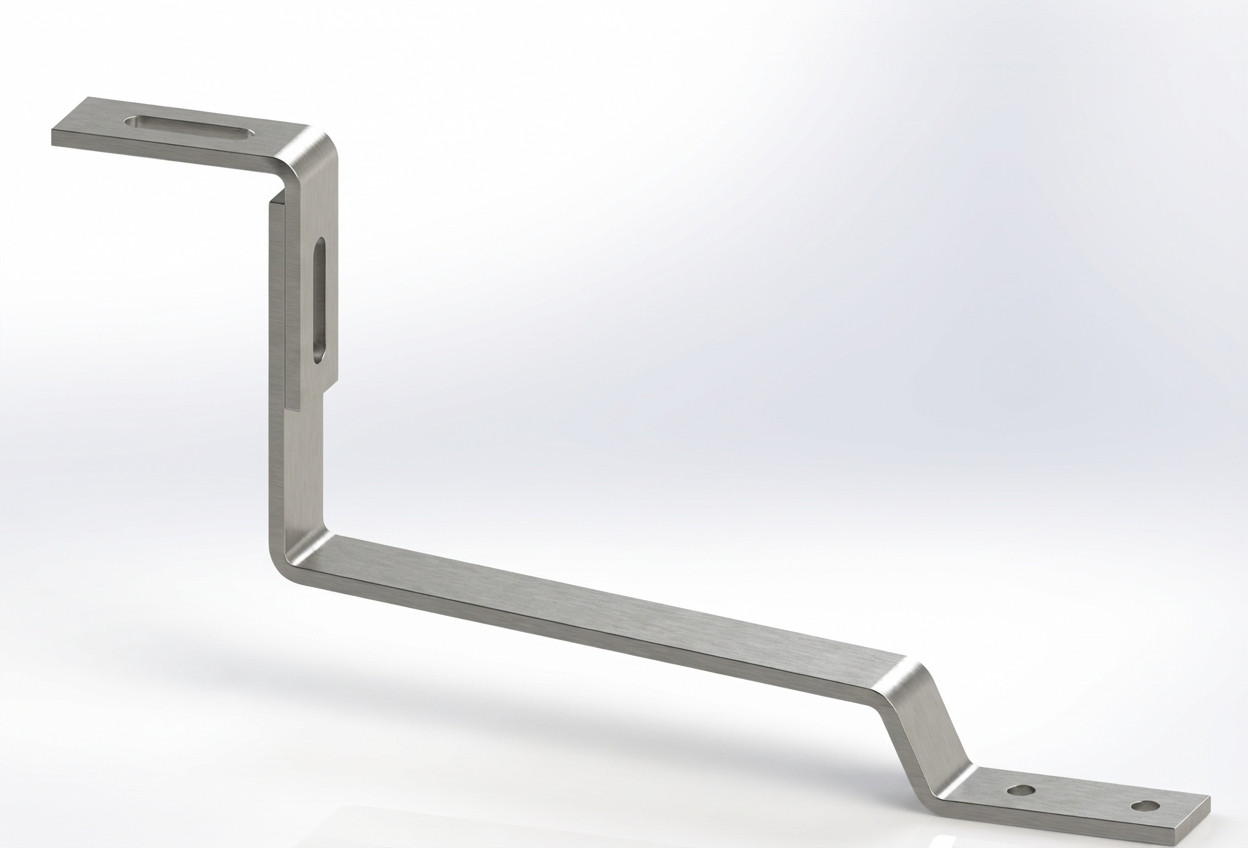

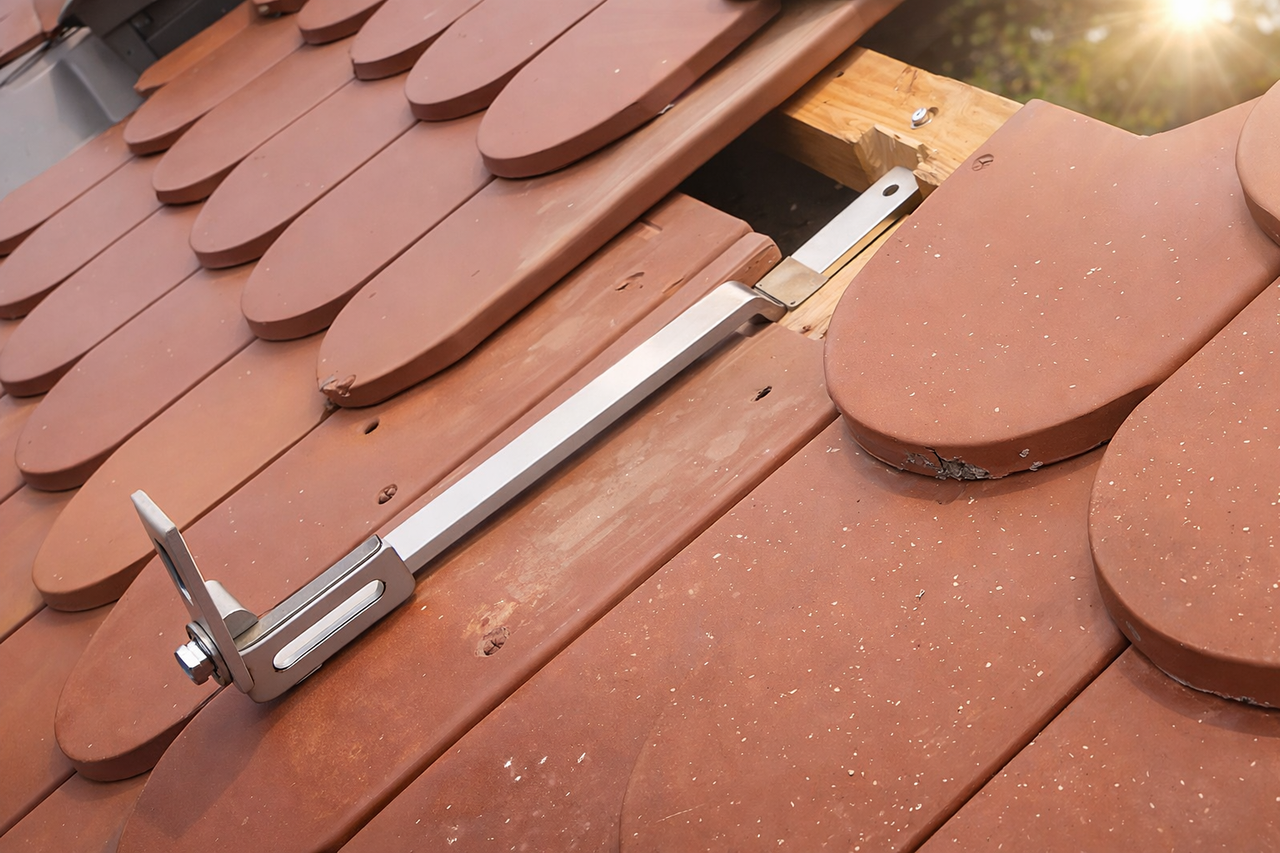

Slate / Flat Tile
Ultra-slim ribbon design. No cutting.
Flat Roof & Tilt Systems
Solutions for Concrete Roofs.

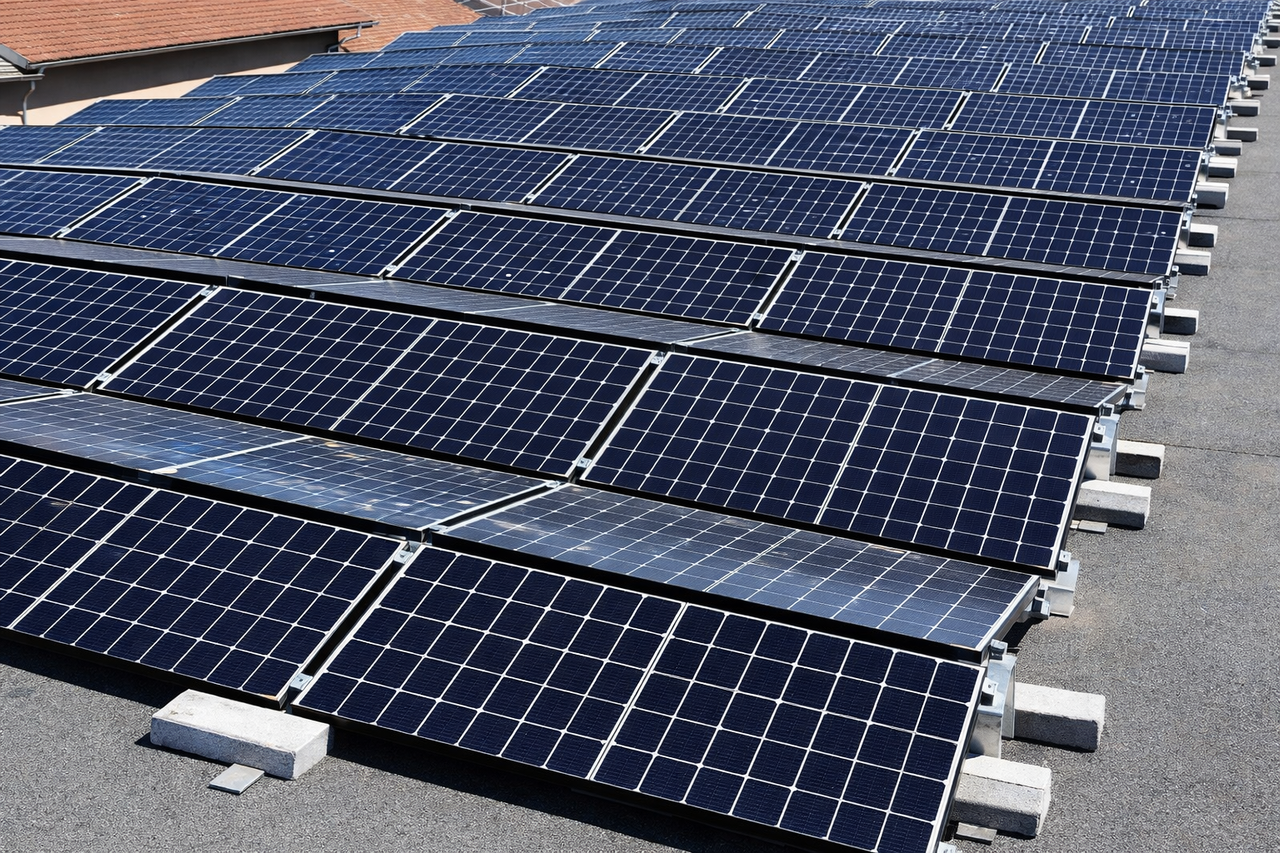

Carbon Steel Ballast
Q235B Hot-dip galvanized. Split-type design for max flexibility.
Adjustable Tilt Legs
AL6005-T5 legs (15-30°/30-60°) for metal or concrete roofs.
Rails & Accessories
Engineered Aluminum Profiles for Any Span & Load.

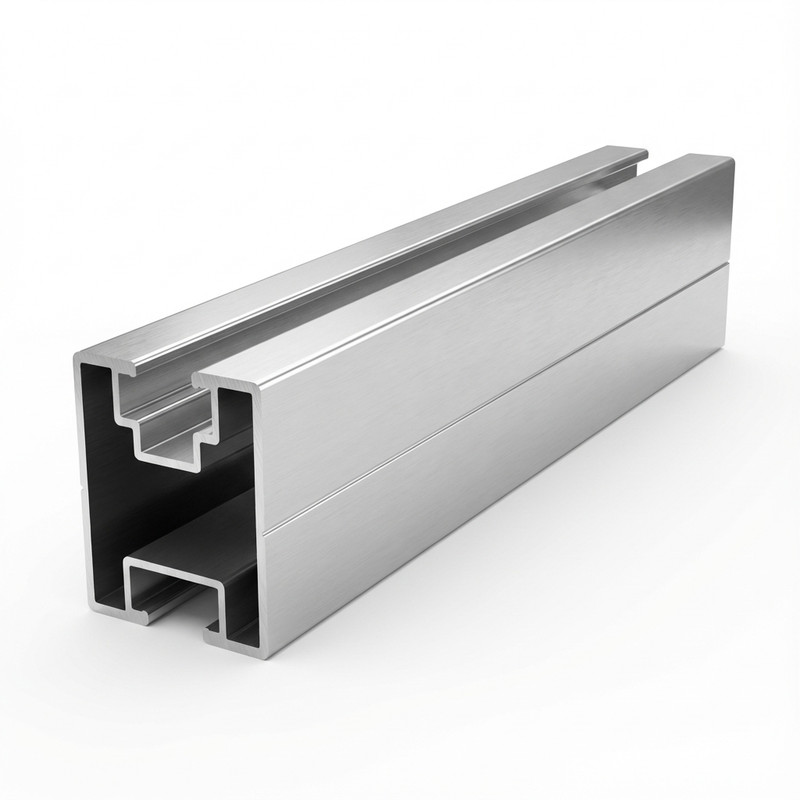

ECO Lite
OS-R-LR-H38
Cost-effective for metal sheets.

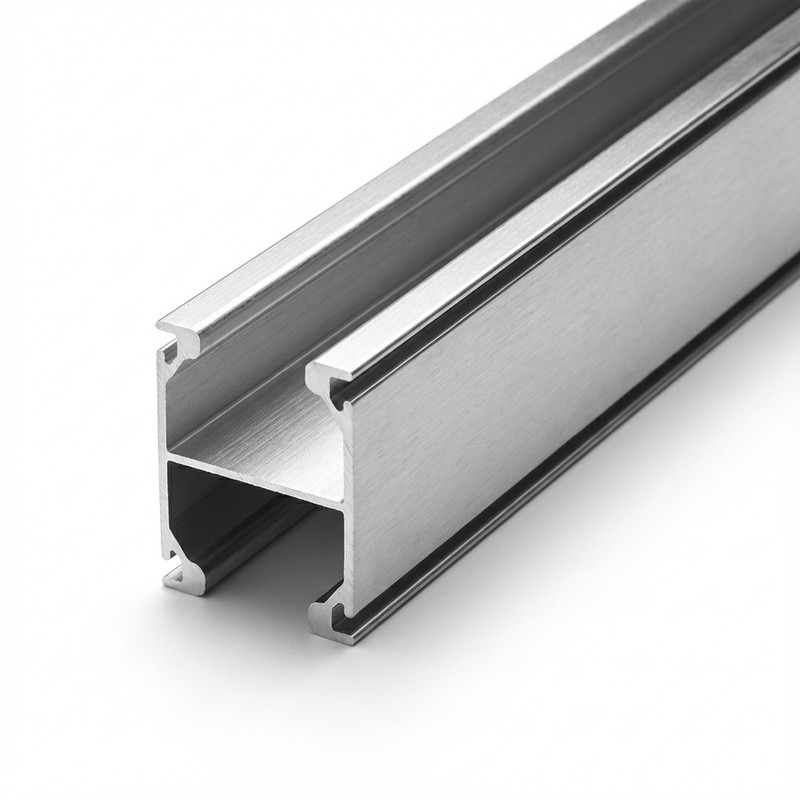

STANDARD
OS-R-HR-H40
Universal residential rail.

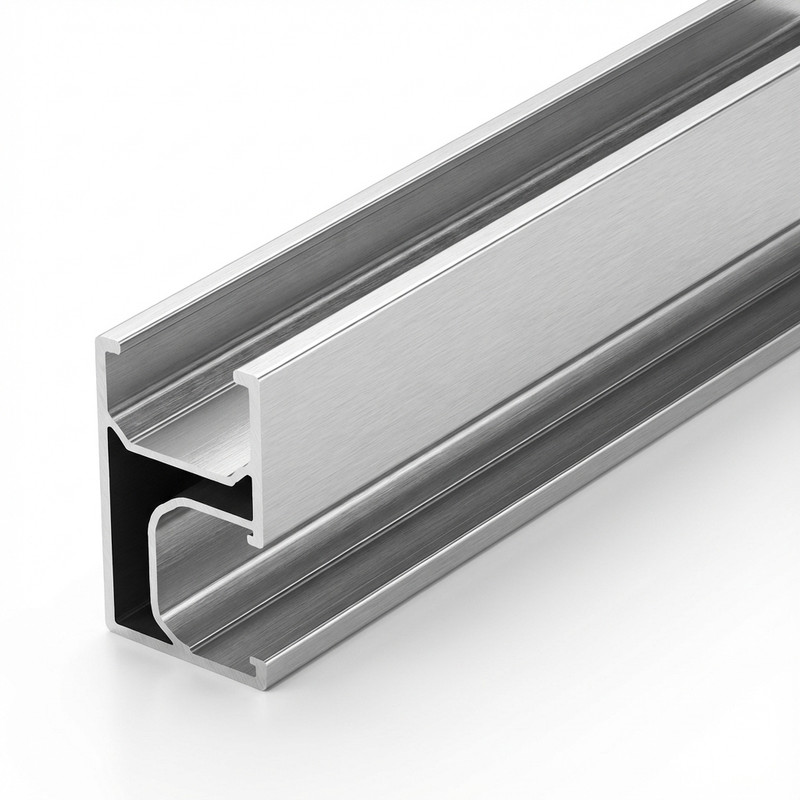

PRO
OS-R-SR-H53
High Strength & Adjustable
Roof mount sourcing & BOM scenarios
Roof-mount sourcing starts from the roof interface, because the clamp or hook decides both waterproofing and load path. The spec differences that matter are the roof profile (standing-seam, trapezoidal, tile or flat), the attachment method (non-penetrating clamp, penetrating mini-rail, tile hook or ballast), the rail span and the material grade for the coastal or inland environment.
Typical BOM scenarios: a metal-roof commercial job pairs seam clamps or mini-rails with rails, mid and end clamps; a tile-roof residential job uses adjustable hooks matched to the exact tile profile; a flat concrete roof uses ballasted tilt frames with locally sourced ballast. OmniSol matches the interface to the roof, confirms clamp range against module frame height, and consolidates rails, clamps and fasteners with the rest of the BOS into one container. Send the roof type, module size and array layout, and the rooftop structure is quoted against the actual interface.
Roof mounting RFQ specification table
| Specification field | Procurement detail to confirm |
|---|---|
| Roof interface | Standing seam, trapezoidal metal, tile, slate or concrete flat roof |
| Attachment method | Non-penetrating clamp, mini-rail, tile hook, hanger bolt or ballast frame |
| Module fit | Module length, width, frame height and clamp range |
| Load basis | Design wind speed, snow load, roof zone and local structural standard |
| Material / finish | AL6005-T5 anodized aluminium, SUS304/SUS316 fasteners or galvanized steel where required |
| Packing plan | Rail length limit, pre-assembly request, carton labeling and destination port |
Frequently Asked Questions
What is the difference between penetrating and non-penetrating clamps?
Non-penetrating clamps (CS Series) grip the standing seam without drilling, protecting the roof warranty. Penetrating mini-rails (CT Series) use self-tapping screws with EPDM gaskets for trapezoidal roofs.
Do you have solutions for Balconies?
Yes! We offer a specialized pre-packaged Balcony Hook System designed for retail and DIY markets.
Can I use your hooks for slate roofs in the UK?
Yes, our OS-TH-10 is specifically designed as a rip-stop slate hook, allowing installation without cutting or grinding tiles.
