Plug & Play Balcony Solar Kits
The Europe-Standard 'Balkonkraftwerk'. Universal hooks for Round, Square, and Flat railings. Ready for Retail Distribution.
Designed for DIY & Retail
Angle Adjustable
Tilt angle adjustable (0° / 15-30°) to maximize energy yield by up to 15%.

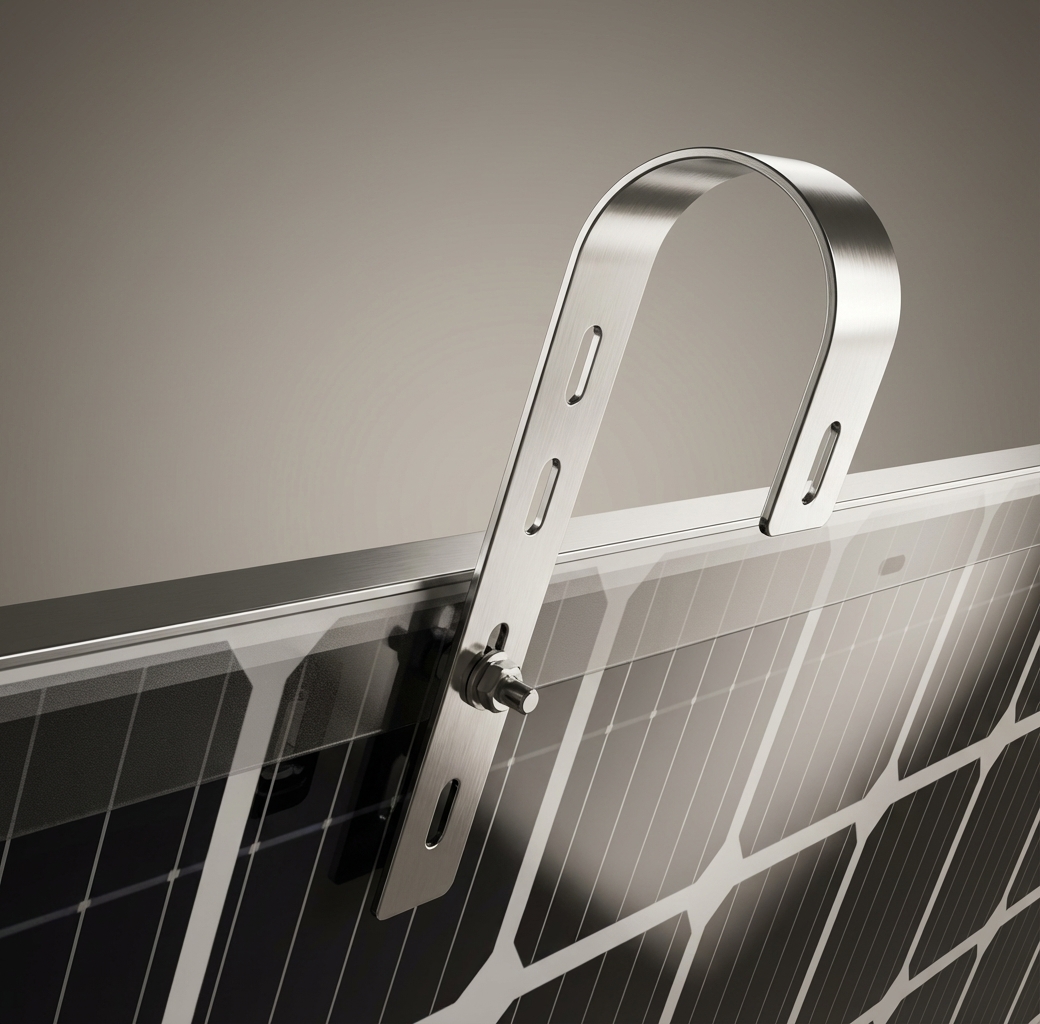

Dual Safety Lock
German Standard: Stainless steel hook + Secondary safety steel cable prevents falling.
Retail Packaging
Compact single-box design (1100x200x150mm). Optimized for Euro-Pallet logistics.
Universal Railing Compatibility
Select Mounting Scenario

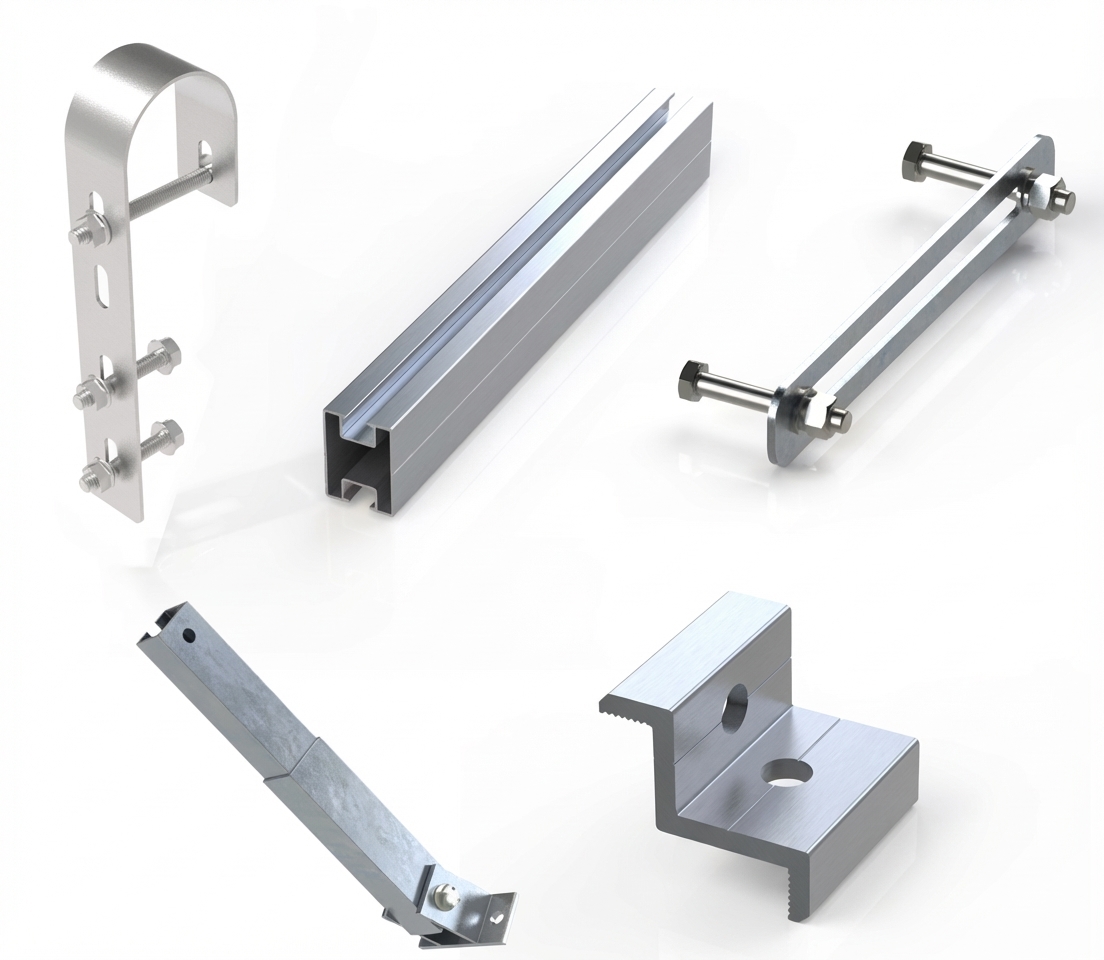

Hook Series (Railing)
Direct hanging solution for apartment balconies.
- SUS304 Stainless Steel
- Adjustable Telescopic Arm
- Silver / Black Optional

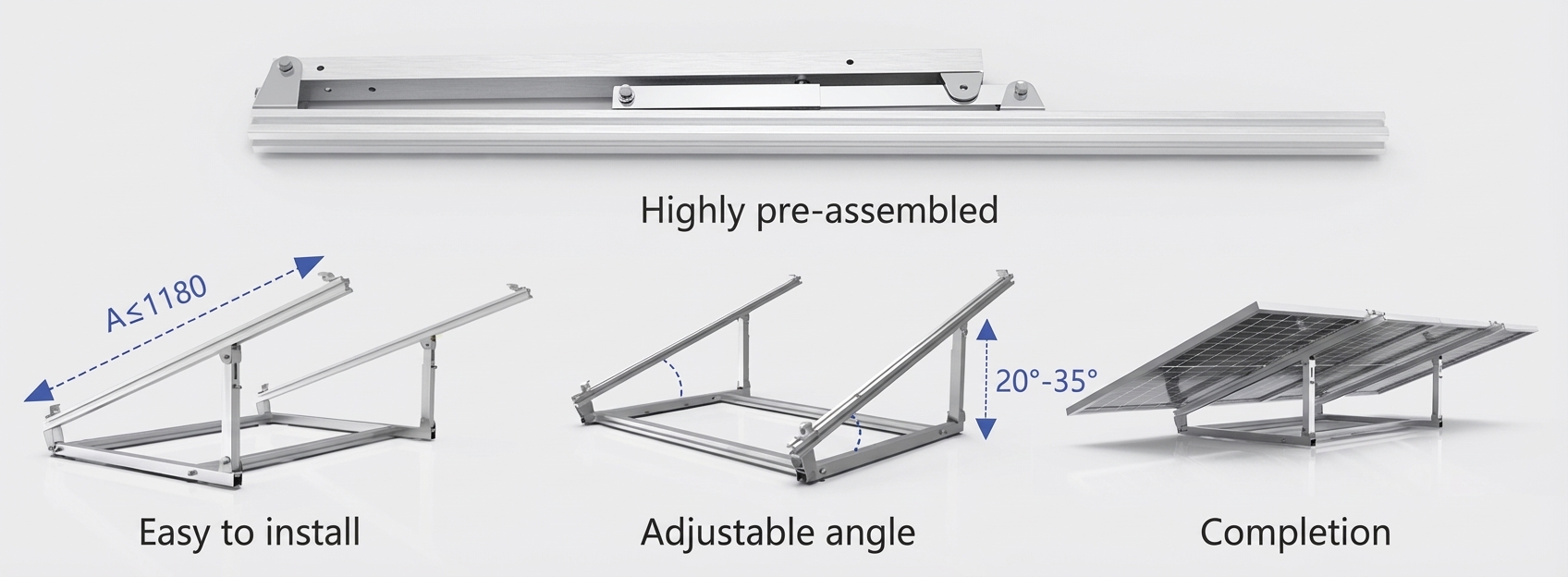

Console Series (Wall/Garden)
Triangle bracket for concrete walls or flat gardens.
- AL6005-T5 Aluminum
- 0-60° Adjustment
- Ballast Compatible
Install in 3 Simple Steps
No professional tools required. Designed for end-user installation.
Fix the Hooks
Attach the pre-assembled hooks to the balcony railing and tighten the screws.
Mount Rails & Inverter
Secure the rails to the hooks and attach the micro-inverter to the rail.
Hang the Panel
Place the solar panel onto the rails and secure with end clamps. Plug in and done!
Need detailed instructions?
Download Installation Manual (PDF)Balcony Kit Technical Specifications
Core specification of the universal balcony mounting kit. Variant details (hook vs console, finish, panel count) are confirmed per order.
| Hook Material | SUS304 Stainless Steel (railing) / AL6005-T5 (console) |
|---|---|
| Railing Compatibility | Round Ø20–60mm, Square ≤60×60mm, Flat / wall >5mm |
| Tilt Angle | 0° fixed or 15–30° adjustable |
| Wind Resistance | Up to 30 m/s with secondary safety cable |
| Safety | Stainless steel hook + secondary anti-fall steel cable (German standard) |
| Panel Fit | 30–35mm frame modules, 1 or 2 panels per kit |
| Retail Packing | Single box ~1100×200×150mm, Euro-pallet optimised |
| Finish | Silver anodized or black powder coated |
Balcony Solar RFQ Checklist
Send these details and OmniSol returns a quote-ready balcony kit BOM with packing and document notes in one pass.
- Railing type and thickness (round / square / flat) for hook matching
- Tilt requirement: fixed 0° or adjustable 15–30°
- Panel size, wattage and quantity per kit (1 or 2 panels)
- Whether micro-inverter and panel should be matched and consolidated
- Destination country, port and retail packaging / labelling needs
- Order quantity and target delivery window
Sourcing, Shipping & QC
Balcony kits are a retail-ready product, so the sourcing workflow focuses on consistent packaging and documentation. OmniSol consolidates hooks, rails, clamps and safety hardware into one BOM and, on request, matches panels and micro-inverters so the full kit ships in a single container.
Before shipment, a pre-shipment QC step checks hook torque, coating finish, retail carton print and pallet count against the agreed checklist. UN-compliant documents for any included micro-inverter or battery are confirmed at the RFQ stage to avoid customs delays.
For distributors, this means one supplier of record for the whole balcony BOS kit — one QC report, one document set, one shipment — instead of coordinating hooks, rails and electronics from separate factories.
Balcony solar sourcing questions
Are OmniSol balcony solar kits compatible with all railing types?+
Yes. The universal hook fits round (Ø20–60mm), square (up to 60×60mm) and flat or wall railings, so one SKU covers about 95% of European balcony railings. Confirm railing type and thickness in the RFQ so the correct hook or console variant is matched.
What is included in a balcony solar kit BOM?+
A typical balcony kit BOM includes adjustable hooks or console brackets, rails, end and mid clamps, a secondary safety cable, and SUS304 fasteners. Panels and a micro-inverter are matched separately on request and can ship in the same consolidated container.
How are balcony kits packed, inspected and shipped for retail distribution?+
Kits use a compact single-box format (about 1100×200×150mm) optimised for Euro-pallet loading. OmniSol confirms carton labelling, retail packaging, pre-shipment QC photos and any UN-compliant inverter or battery documents at the RFQ stage.
