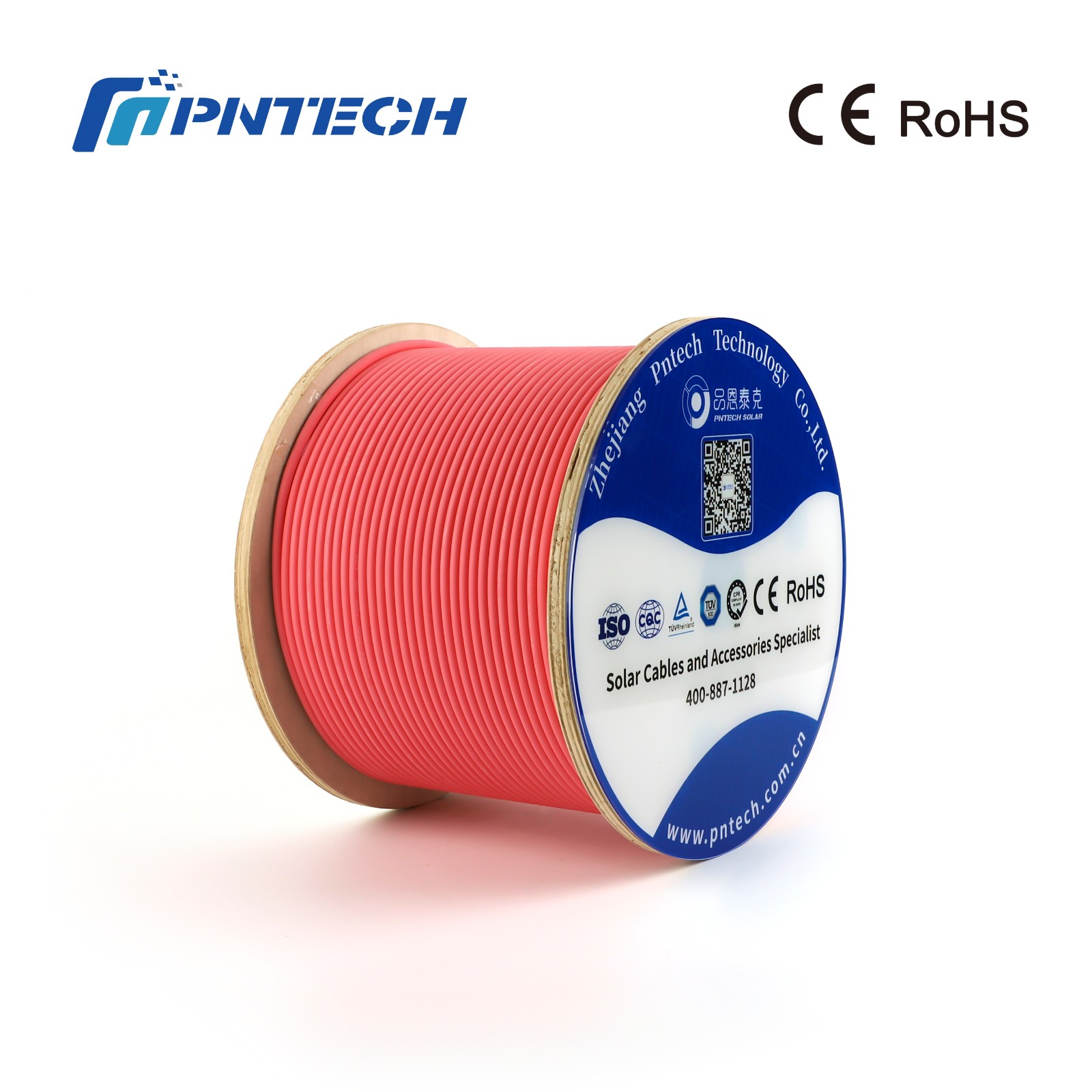

PV Wire UL Solar Cable
Why Quality Matters?
Grouped by product family for cleaner RFQ selection: one page shows the available variant SKUs and key specification choices without creating duplicate product pages.
Conductor Size:
Variant SKU:
RFQ inputs
Quantity, destination, certificate needs.
QC proof
Inspection and document review before shipping.
Export ready
Packaging and mixed-container planning.
Procurement Snapshot
Commercial details are confirmed by SKU, quantity and destination at RFQ stage.
RFQ checklist
Send these points with your inquiry for faster pricing.
Documents to confirm
Often sourced together
Technical Data
Specification values for buyer review and RFQ matching
| Product Family ID | OS-PNT-PV-WIRE |
|---|---|
| Variant SKU Count | 8 |
| Supplier | PNT |
| Supplier Model | PV wire |
| Product Type | PV Cable |
| Available Voltage Ratings | U=1000V and 2000V AC |
| Available Sizes | 2 / 4 / 6 / 8 / 10 / 12 / 14 / 16 |
| Rated Voltage | U=1000V and 2000V AC |
| Certifications | CE / RoHS |
| Conductor Material | Tinned copper |
| Conductor Resistance | 0.5548 Ω/km / 0.882 Ω/km / 1.403 Ω/km / 2.23 Ω/km / 3.546 Ω/km / 5.64 Ω/km / +2 more |
| Conductor Structure | 260×0.39 / 180×0.38 / 116×0.38 / 68×0.38 / 78×0.29 / 48×0.29 / +2 more |
| Finished Outer Diameter | 12.5 mm / 10.1 mm / 8.8 mm / 7.8 mm / 6.8 mm / 6.3 mm / +2 more |
| Flame Or Fire Test | UL1581 VW-1 |
| Insulation Material | XLPO / XLPE |
| Product Approval Or Standard | UL4703 PV 16AWG~2AWG |
| Rated Voltage | U=1000V and 2000V AC |
| Sheath Material | XLPO / XLPE |
| Short Circuit Temperature | - |
| Temperature Rating | -40°C ~ +90°C |
| Test Voltage | 1000V: 18~10AWG U0=6000V 50Hz 1min; 8~2AWG U0=7500V 50Hz 1min |
Product Overview
UL 4703 listed PV Wire for North American installations regulated by NEC. Eight AWG sizes from 16 to 2 AWG cover module-to-junction wiring through large home run conductors. The 2000V AC voltage rating (equivalent to 2000V DC for UL PV Wire) covers both 1000V and 1500V DC string architectures.
For NEC-regulated installations, PV Wire is required for exposed wiring outside conduit on rooftops and arrays. Confirm the AWG, color, and reel footage requirements at RFQ — stock availability is confirmed per size.
PV Wire is the US and Canada specification for solar field wiring, listed to UL 4703 and acceptable as USE-2 per NEC Article 690. Buyers targeting Australian or European projects should confirm whether H1Z2Z2-K cable is acceptable as an equivalent — substituting specifications mid-project can require retesting and delay commissioning.
Applications
PV string wiring
Combiner input wiring
Residential and C&I rooftop solar
Utility-scale DC cabling
Certifications & Compliance
Frequently Asked Questions
Is UL PV Wire required for all US solar installations?
UL 4703 PV Wire is required for exposed wiring in rooftop and ground-mount PV systems under NEC Article 690. THWN-2 conductors in conduit are sometimes used as an alternative for wiring inside enclosed raceways. The authority having jurisdiction (AHJ) makes the final determination.
What colors are available and what do they indicate?
PV Wire is available in black (negative) and red (positive) for standard DC wiring, and in white or gray for grounded conductors where applicable. Confirm color and AWG requirements for the full string BOM and we quote the complete cable package.
