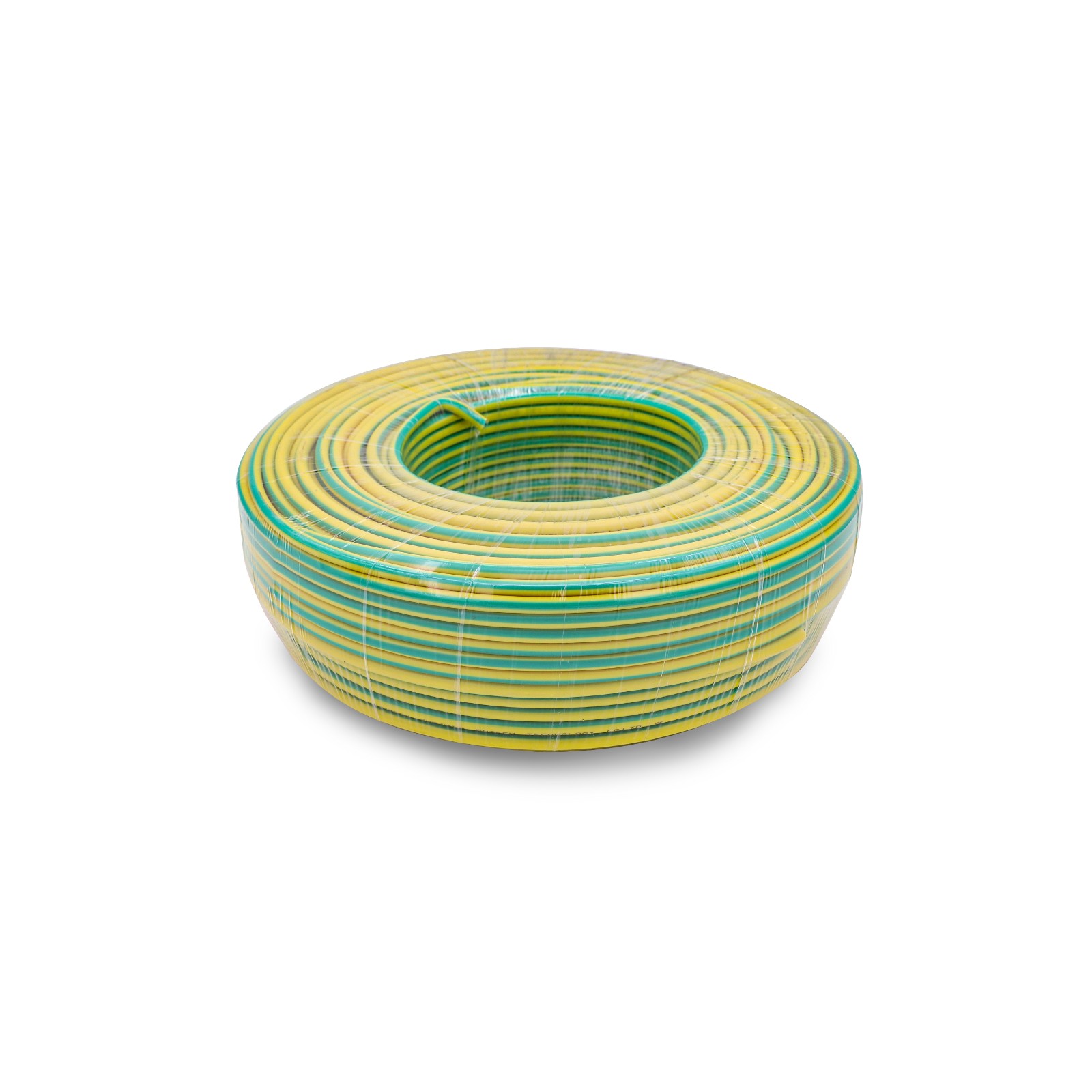

BVR Grounding Cable
Why Quality Matters?
Grouped by product family for cleaner RFQ selection: one page shows the available variant SKUs and key specification choices without creating duplicate product pages.
Conductor Size:
Variant SKU:
RFQ inputs
Quantity, destination, certificate needs.
QC proof
Inspection and document review before shipping.
Export ready
Packaging and mixed-container planning.
Procurement Snapshot
Commercial details are confirmed by SKU, quantity and destination at RFQ stage.
RFQ checklist
Send these points with your inquiry for faster pricing.
Documents to confirm
Often sourced together
Technical Data
Specification values for buyer review and RFQ matching
| Product Family ID | OS-PNT-BVR |
|---|---|
| Variant SKU Count | 7 |
| Supplier | PNT |
| Supplier Model | BVR |
| Product Type | PV Cable |
| Available Voltage Ratings | U0/U 450/750V |
| Available Sizes | 4 / 6 / 10 / 16 / 25 / 35 / 50 |
| Rated Voltage | U0/U 450/750V |
| Certifications | CE / RoHS |
| Conductor Material | Bare copper |
| Conductor Outer Diameter | 2.4 mm / 3 mm / 4 mm / 5 mm / 6.3 mm / 7.4 mm / +1 more |
| Conductor Resistance | 4.61 Ω/km / 3.08 Ω/km / 1.83 Ω/km / 1.15 Ω/km / 0.727 Ω/km / 0.524 Ω/km / +1 more |
| Conductor Structure | 48×0.3 / 78×0.3 / 80×0.39 / 120×0.39 / 196×0.39 / 276×0.39 / +1 more |
| Current/Resistance Note | 20°C max conductor resistance shown. |
| Finished Outer Diameter | 4.2 mm / 5.1 mm / 6.5 mm / 7.6 mm / 9.2 mm / 10.3 mm / +1 more |
| Flame Or Fire Test | - |
| Insulation Material | PVC |
| Product Approval Or Standard | JB/T 8734.2-2016 |
| Rated Voltage | U0/U 450/750V |
| Sheath Material | PVC |
| Sheath Thickness | 0.8 mm / 1 mm / 1.2 mm / 1.4 mm |
| Short Circuit Temperature | 110°C / 5s |
Procurement & BOM Notes
How BVR Grounding Cable is sourced
OmniSol sources BVR Grounding Cable factory-direct as part of the PV Cable family, quoted against your project quantity, destination port and product family id (OS-PNT-BVR). Pricing and lead time are confirmed by SKU and order size at the RFQ stage, and OmniSol can propose a current-equivalent option if the exact variant is unavailable, so the line stays on schedule.
BOM fit
On a project BOM, BVR Grounding Cable is ordered together with matched connectors and DC protection so the string circuit is complete, not as a loose reel. Cross-section, reel length and colour are confirmed against the string design, and the cable consolidates with the rest of the BOS into a single container.
Certification check
Confirm the BVR Grounding Cable certificates — CE, RoHS, JB, T 8734.2-2016 — and the jacket marking required for your market before ordering. OmniSol supplies the datasheet, certificate copy and a cable-marking photo at RFQ and pre-shipment QC.
Product Overview
Flexible copper conductor grounding cable rated at 450/750V for PV frame earthing, equipment bonding, and grounding bus connections. Seven size options from 4mm² to 50mm² cover small residential earth conductors through main earthing conductor runs in commercial plants.
BVR is widely used in Chinese domestic installations and accepted for grounding runs in international projects where the voltage rating is appropriate. For export projects we confirm whether BVR wording or an IEC 60227 equivalent is required by the local earthing standard.
BVR is a general-purpose flexible copper wire suitable for panel wiring, transformer connections, and low-voltage AC circuits inside enclosures. Not UV-rated for outdoor direct exposure; use in conduit or enclosed panels only — solar-rated H1Z2Z2-K or PV1-F cable is required for outdoor DC string wiring.
Applications
PV string wiring
Combiner input wiring
Residential and C&I rooftop solar
Utility-scale DC cabling
Certifications & Compliance
Frequently Asked Questions
How do I select the correct grounding cable cross-section?
Grounding conductor size is determined by the fault current path, the upstream overcurrent protection rating, and local electrical code. The general rule is that a protective conductor must be at least 16mm² copper for buried earth leads and sized per IEC 60364-5-54 or the local equivalent.
Is BVR suitable for outdoor grounding runs?
Standard BVR has PVC insulation rated for indoor use. For outdoor or buried grounding runs, confirm whether the installation requires a UV-stabilized or direct-burial rated insulation — we recommend confirming the specification before ordering.
Technical Guides
Products & Systems
Markets & Services
Need project-specific engineering support?
Free CAD layout, wind/snow load calculations, and BOM review included with project orders.
Related Products
More components from the same application category.

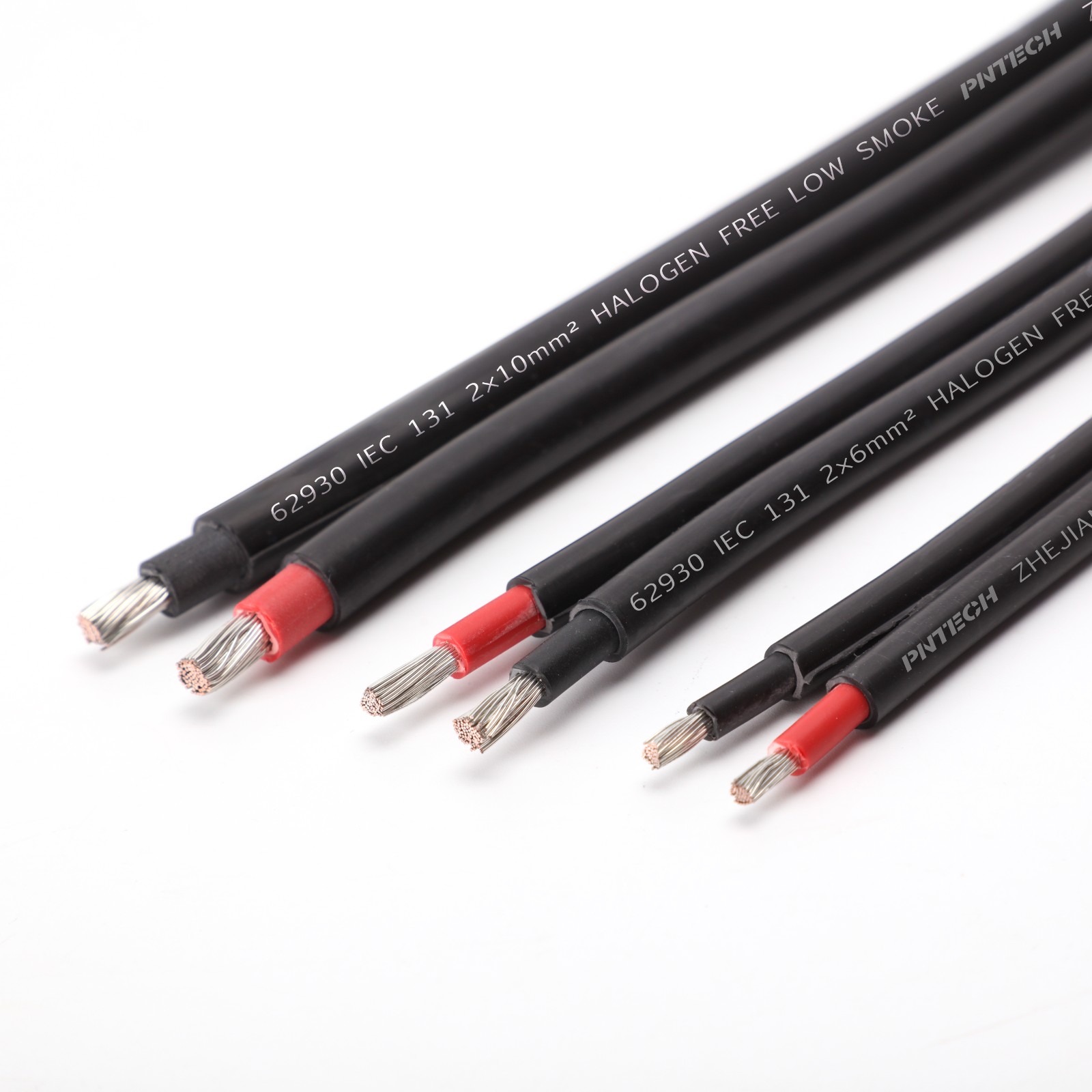

62930 IEC131 Double-Core Solar PV Cable
62930 IEC131 Double-Core Solar PV Cable is organized as one OmniSol product-family page with 4 selec...
62930 IEC131 Solar PV Cable
62930 IEC131 Solar PV Cable is organized as one OmniSol product-family page with 8 selectable varian...

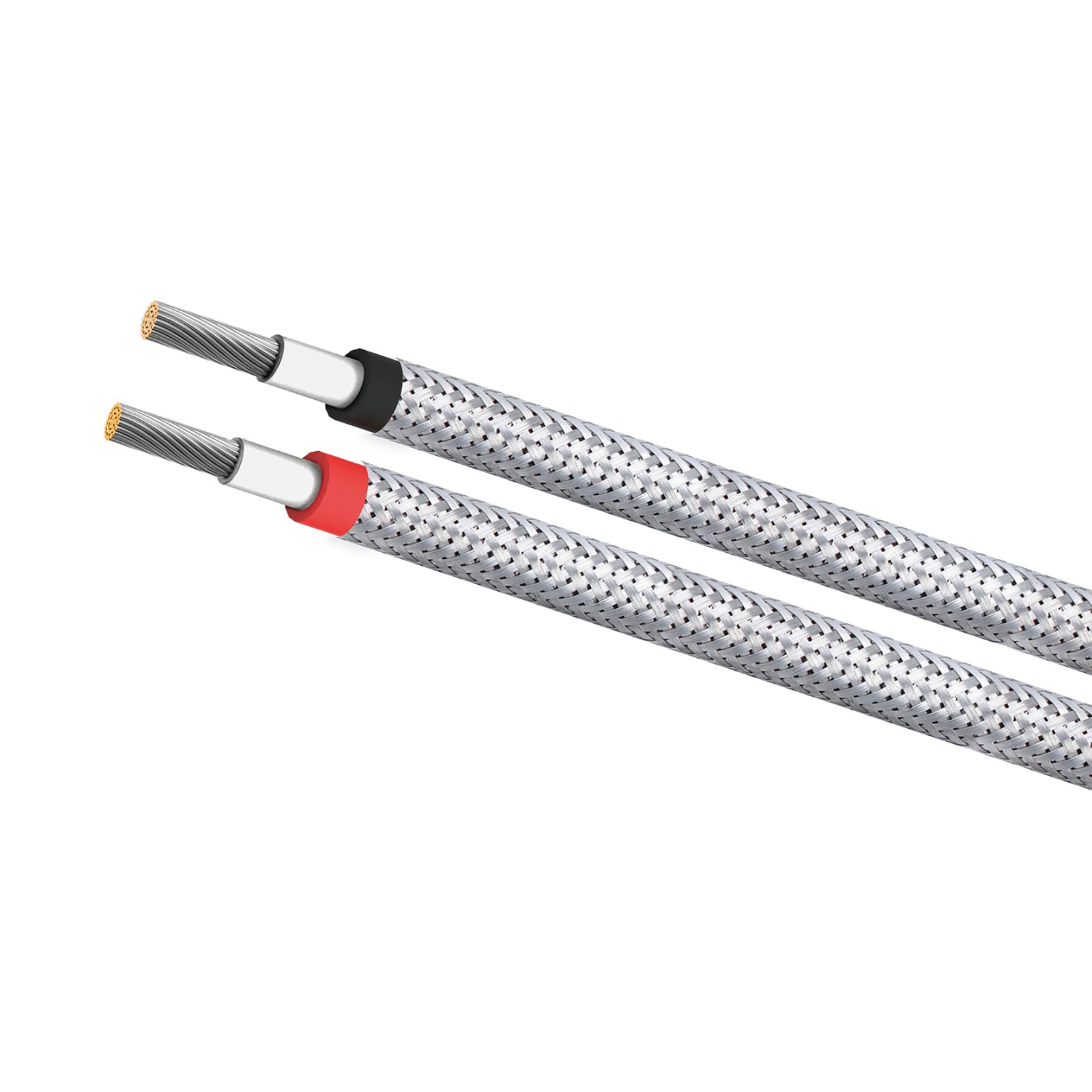

Armored H1Z2Z2-K Solar PV Cable
