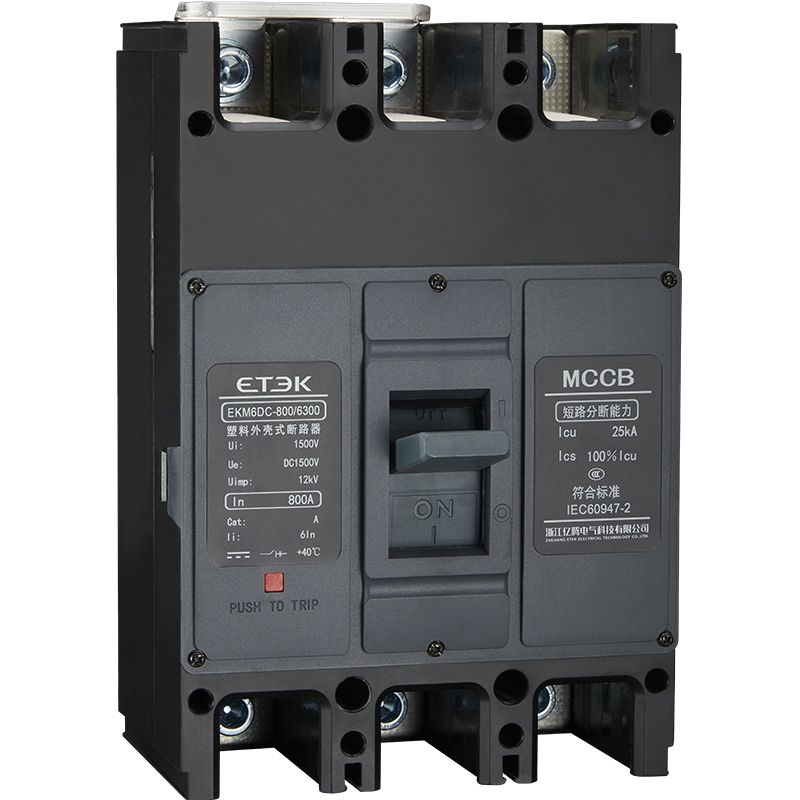

EKM6DC-800 High Capacity DC Circuit Breaker (630A-800A) - Enterprise Protection Solution
Why Quality Matters?
Grouped by product family for cleaner RFQ selection: one page shows the available variant SKUs and key specification choices without creating duplicate product pages.
Current Rating:
Rated Current:
Variant SKU:
RFQ inputs
Quantity, destination, certificate needs.
QC proof
Inspection and document review before shipping.
Export ready
Packaging and mixed-container planning.
Procurement Snapshot
Commercial details are confirmed by SKU, quantity and destination at RFQ stage.
RFQ checklist
Send these points with your inquiry for faster pricing.
Documents to confirm
Often sourced together
Technical Data
Specification values for buyer review and RFQ matching
| Product Family ID | OS-ETK-EKM6DC-800 |
|---|---|
| Variant SKU Count | 3 |
| Supplier | ETK |
| Supplier Model | EKM6DC-800 |
| Product Type | MCB / Circuit Breaker |
| Available Current Ratings | 630A / 700A / 800A |
| Available Voltage Ratings | 2P |
| Rated Voltage | 2P |
| Rated Current | 630A / 700A / 800A |
| Frame Current | 800A |
| Frame Size / Ways | 800A |
| Rated Current | 630,700,800A / 630A / 700A / 800A |
| Rated Insulation Voltage | 1500V |
| Standard | IEC60947-2 |
| Uimp | 12kV |
Product Overview
630A to 800A current range addresses large inverter DC input protection and main DC switchboard breakers in utility-scale PV where standard MCCB ratings are insufficient. Three current variants (630A, 700A, 800A) allow close matching to the inverter DC input rating with appropriate margin.
At this current level the breaker typically protects the combined output bus of multiple combiner boxes feeding one inverter DC input. DC voltage and breaking capacity at the system voltage must both be confirmed — DC breaking capacity at high voltage is often lower than the rated current implies.
800V DC rated protection covers legacy 800V system architectures and retrofit projects where the existing system voltage is below 1000V. Do not substitute an 800V-rated device where 1000V or 1500V system voltage applies — insulation breakdown risk under overvoltage conditions increases significantly above the rated voltage.
Applications
PV string and array protection
Combiner box internal protection
Inverter DC input circuits
Utility and C&I solar BOS
Certifications & Compliance
Frequently Asked Questions
What DC voltage is EKM6DC-800 rated for?
Confirm the rated DC voltage from the datasheet at RFQ — high-current DC breakers often have a lower voltage rating per pole than lower-current models due to arc energy constraints. Share your system voltage alongside the required current rating.
Can OmniSol supply test certificates for this product?
Yes. Certificate copies, type test reports, and inspection documents are confirmed before order placement for large DC protection equipment. Specify the required certificate format at RFQ.
Technical Guides
Products & Systems
Markets & Services
Need project-specific engineering support?
Free CAD layout, wind/snow load calculations, and BOM review included with project orders.
Related Products
More components from the same application category.

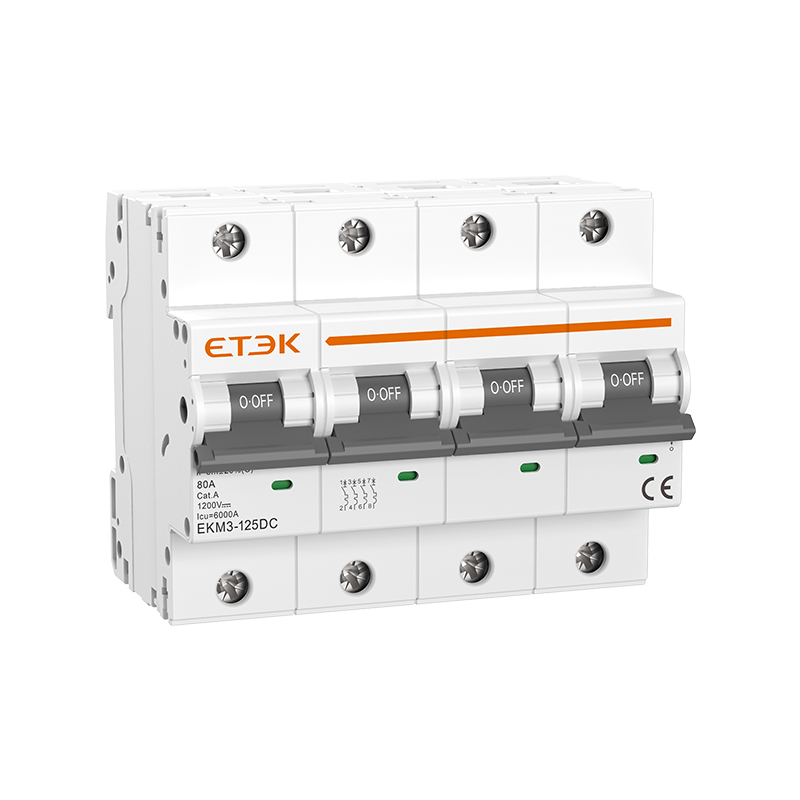

EKM3-125DC Non-Polarity High-Current DC Miniature Circuit Breaker (Up to 125A)
EKM3-125DC Non-Polarity High-Current DC Miniature Circuit Breaker (Up to 125A) is organized as one O...

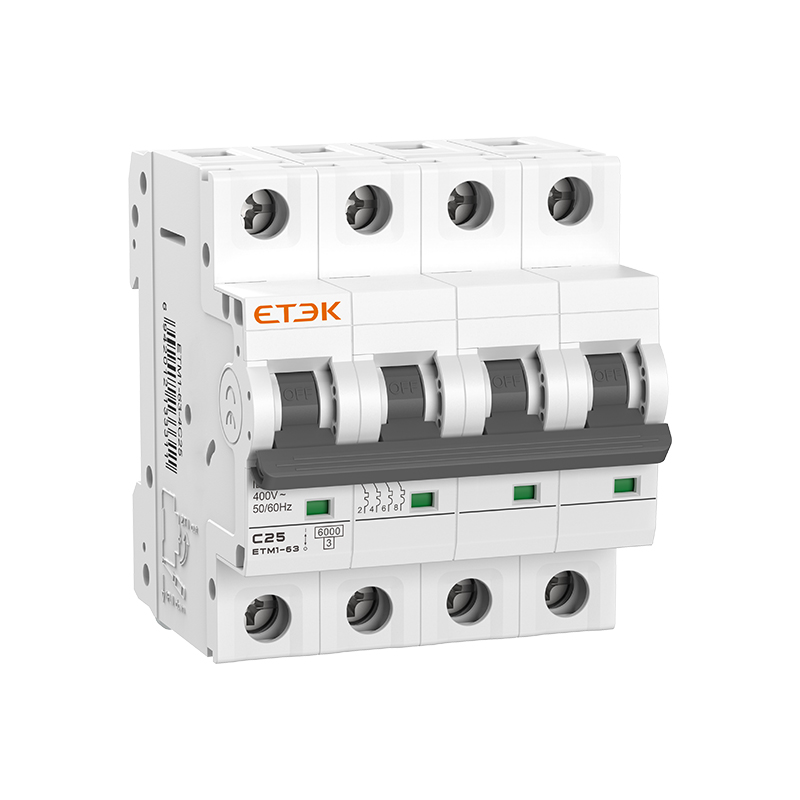

ETM1-63 Solar AC Circuit Breaker | 6kA Breaking Capacity
