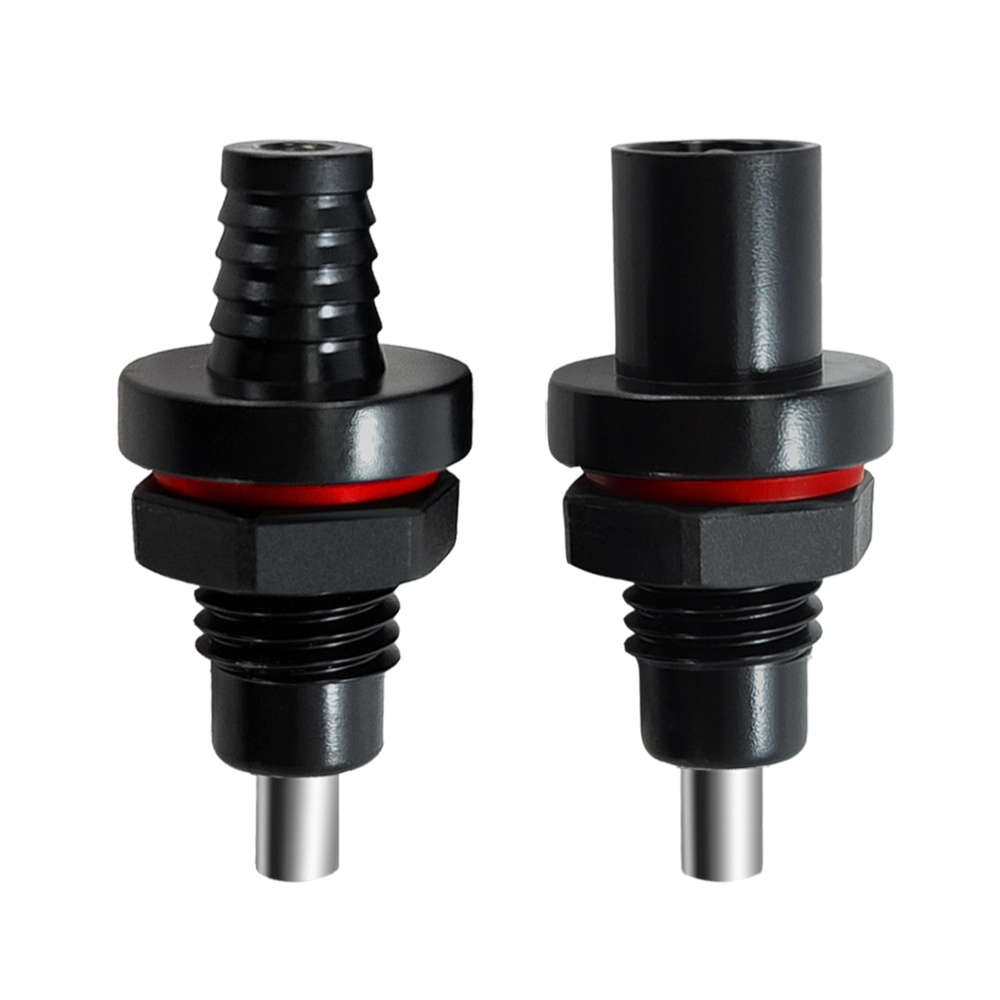

NSPV Solar MC3 Panel Connector DC1000V IP67
Why Quality Matters?
Sourced from New PV (NSPV brand) and offered through OmniSol as supplier of record. Request current pricing, MOQ, certificates and lead time at RFQ.
RFQ inputs
Quantity, destination, certificate needs.
QC proof
Inspection and document review before shipping.
Export ready
Packaging and mixed-container planning.
Procurement Snapshot
Commercial details are confirmed by SKU, quantity and destination at RFQ stage.
RFQ checklist
Send these points with your inquiry for faster pricing.
Documents to confirm
Often sourced together
Technical Data
Specification values for buyer review and RFQ matching
| Model | MC3 |
|---|---|
| Voltage Rating | DC1000V |
| Current Rating | 30A |
| Waterproof Rating | IP67 |
| Cable Size Range | 2.5mm² to 6mm² |
| Material | PPE/PA |
| Contact Material | Tin-plated copper |
| Temperature Range | -40°C to +90°C |
| Supplier | New PV (NSPV) |
Procurement & BOM Notes
How NSPV Solar MC3 Panel Connector DC1000V IP67 is sourced
OmniSol sources NSPV Solar MC3 Panel Connector DC1000V IP67 factory-direct as part of the PV Connector family, quoted against your project quantity, destination port and model (MC3). Pricing and lead time are confirmed by SKU and order size at the RFQ stage, and OmniSol can propose a current-equivalent option if the exact variant is unavailable, so the line stays on schedule.
BOM fit
NSPV Solar MC3 Panel Connector DC1000V IP67 is matched to the project's PV cable and string layout, so it is quoted with the cable size and per-string quantity rather than as a generic spare. It consolidates with cable, branch connectors and protection in one shipment under a single QC report.
Certification check
Confirm the NSPV Solar MC3 Panel Connector DC1000V IP67 certificates — IEC — and the IP rating for the destination market before ordering. OmniSol supplies the datasheet and test report at the RFQ stage.
Product Overview
The NSPV MC3 Panel Connector is an older-style MC3 PV connector for legacy systems and panel mounting, built to IEC 62852, rated DC 1000V and 30A with an IP67 PPE/PA body, tin-plated copper contacts and a -40°C to +90°C range. It suits replacement and maintenance of installed MC3-format arrays where MC4 is not used.
Select it by conductor size and confirm the array is genuinely MC3-format, as MC3 and MC4 do not inter-mate safely. When sourcing, give us your cable cross-section (2.5–6mm²) and quantity at RFQ; the MC3 connectors consolidate with PV cable and other BOS items in one OmniSol shipment.
Applications
Solar string wiring
Module-to-module connections
Combiner box input wiring
Field maintenance and replacement
Certifications & Compliance
Frequently Asked Questions
Is MC3 compatible with MC4 connectors?
No. MC3 and MC4 look similar but are not safely intermateable. Use MC3 only to match an existing MC3 array; for new builds choose MC4-compatible connectors.
What is the rating?
DC 1000V and 30A, IP67, for cable from 2.5–6mm². Confirm your conductor size at RFQ.
Which standard does it meet?
It is built to IEC 62852, with IEC documentation at RFQ.
When would I still use MC3?
Mainly for maintenance, repair or extension of legacy MC3 installations. Tell us the existing connector type at RFQ and we confirm the match.
