NSPV Solar Cable Connector 1500V DC IP68
Why Quality Matters?
Sourced from New PV (NSPV brand) and offered through OmniSol as supplier of record. Request current pricing, MOQ, certificates and lead time at RFQ.
RFQ inputs
Quantity, destination, certificate needs.
QC proof
Inspection and document review before shipping.
Export ready
Packaging and mixed-container planning.
Procurement Snapshot
Commercial details are confirmed by SKU, quantity and destination at RFQ stage.
RFQ checklist
Send these points with your inquiry for faster pricing.
Documents to confirm
Often sourced together
Technical Data
Specification values for buyer review and RFQ matching
| Rated Voltage | 1500V DC |
|---|---|
| Rated Current | 30A–100A (model-dependent) |
| Test Voltage | 8kV (50Hz, 1min) |
| Contact Resistance | ≤0.25mΩ |
| Cable Cross-Section | 2.5–16mm² (14–6AWG) |
| Operating Temperature | -40°C to +85°C (IEC standard) |
| Contacts | Copper with tin plating |
| Insulation | PPE/PA (flame-retardant, UV-stabilized) |
| Supplier | New PV (NSPV) |
Procurement & BOM Notes
How NSPV Solar Cable Connector 1500V DC IP68 is sourced
OmniSol sources NSPV Solar Cable Connector 1500V DC IP68 factory-direct as part of the PV Connector family, quoted against your project quantity, destination port and rated voltage (1500V DC). Pricing and lead time are confirmed by SKU and order size at the RFQ stage, and OmniSol can propose a current-equivalent option if the exact variant is unavailable, so the line stays on schedule.
BOM fit
NSPV Solar Cable Connector 1500V DC IP68 is matched to the project's PV cable and string layout, so it is quoted with the cable size and per-string quantity rather than as a generic spare. It consolidates with cable, branch connectors and protection in one shipment under a single QC report.
Certification check
Confirm the NSPV Solar Cable Connector 1500V DC IP68 certificates — IEC — and the IP rating for the destination market before ordering. OmniSol supplies the datasheet and test report at the RFQ stage.
Product Overview
The NSPV 1500V DC Cable Connector is a male/female PV connector built to IEC 62852, rated 1500V DC and 30A–100A depending on conductor size, with an IP68 housing, ≤0.25mΩ contact resistance and tin-plated copper contacts. The PPE/PA insulation is flame-retardant and UV-stabilised, and the nut-cap locking (1.5–1.8Nm) gives a secure, repeatable seal for harsh coastal or desert sites.
It accepts 2.5–16mm² (14–6AWG) PV cable and operates from -40°C to +85°C. When sourcing, specify your cable cross-section and system string voltage at RFQ so we supply the correct current variant and confirm crimp tooling; include the connector in your connector BOM with matching PV cable and DC protection for a single consolidated OmniSol shipment.
Applications
Solar string wiring
Module-to-module connections
Combiner box input wiring
Field maintenance and replacement
Certifications & Compliance
Frequently Asked Questions
What cable cross-sections does this connector accept?
2.5–16mm² (14–6AWG) PV cable. The rated current scales with conductor size (up to 100A on 16mm²). Confirm your cable size at RFQ and we supply the matching contact and crimp guidance.
Is it rated for 1000V or 1500V DC?
It is rated 1500V DC, suitable for high-voltage strings; match the connector class to your highest open-circuit string voltage.
Can it be mated with other MC4-type connectors?
Cross-brand mating is not certified and can compromise the IP68 seal, temperature rating and warranty. Use identical NSPV male/female pairs; flag any cross-mating requirement at RFQ.
Is crimping required and what standard applies?
Contacts are crimped to the cable with the correct tool, then the housing is assembled and the nut cap torqued to 1.5–1.8Nm. The connector is built to IEC 62852, with TÜV/IEC documentation at RFQ.
Related Products
More components from the same application category.
PV004 PV Connector Series
PV004 connector family with 13 catalog variants.
PV005 PV Connector Series
PV005 connector family with 8 catalog variants.

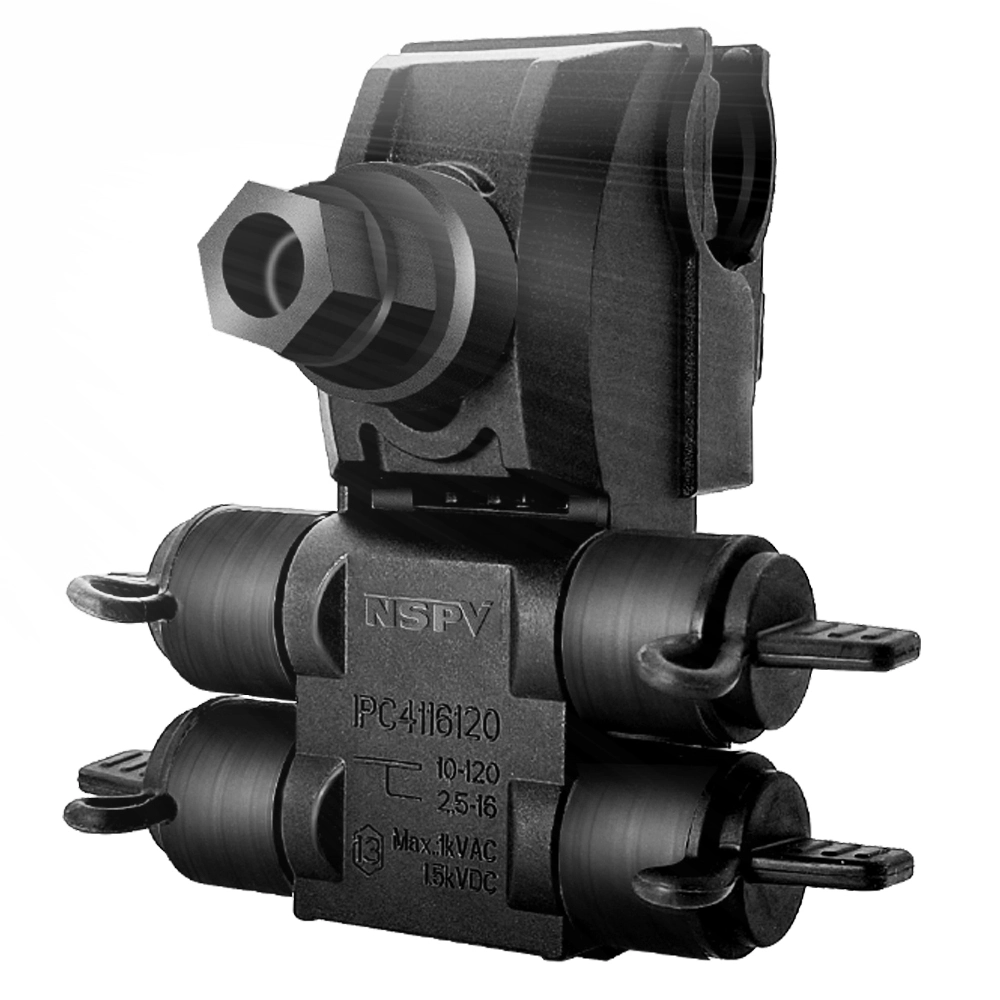

NSPV Solar Insulation Piercing Connector NSPV-IPC4116120
