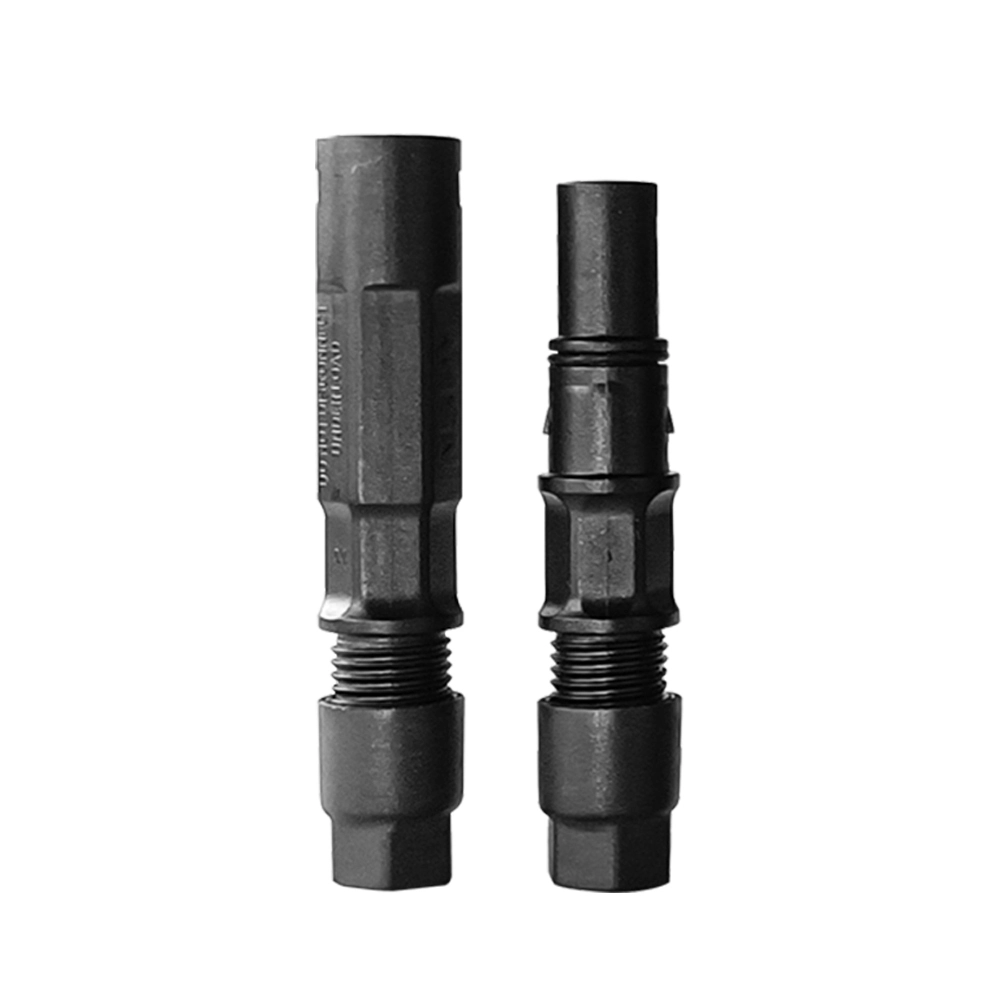

NSPV Solar 1500VDC Mini Connectors
Why Quality Matters?
Sourced from New PV (NSPV brand) and offered through OmniSol as supplier of record. Request current pricing, MOQ, certificates and lead time at RFQ.
RFQ inputs
Quantity, destination, certificate needs.
QC proof
Inspection and document review before shipping.
Export ready
Packaging and mixed-container planning.
Procurement Snapshot
Commercial details are confirmed by SKU, quantity and destination at RFQ stage.
RFQ checklist
Send these points with your inquiry for faster pricing.
Documents to confirm
Often sourced together
Technical Data
Specification values for buyer review and RFQ matching
| Voltage Rating | 1000V DC |
|---|---|
| Cable Diameter Range | 4mm to 6mm |
| Material | PPE/PA, UV-resistant housing |
| IP Rating | IP67 |
| Temperature Range | -40°C to +90°C |
| Contact Resistance | ≤0.25 mΩ |
| Certifications | IEC 62930 |
| Supplier | New PV (NSPV) |
Procurement & BOM Notes
How NSPV Solar 1500VDC Mini Connectors is sourced
OmniSol sources NSPV Solar 1500VDC Mini Connectors factory-direct as part of the PV Connector family, quoted against your project quantity, destination port and voltage rating (1000V DC). Pricing and lead time are confirmed by SKU and order size at the RFQ stage, and OmniSol can propose a current-equivalent option if the exact variant is unavailable, so the line stays on schedule.
BOM fit
NSPV Solar 1500VDC Mini Connectors is matched to the project's PV cable and string layout, so it is quoted with the cable size and per-string quantity rather than as a generic spare. It consolidates with cable, branch connectors and protection in one shipment under a single QC report.
Certification check
Confirm the NSPV Solar 1500VDC Mini Connectors certificates — IEC — and the IP rating for the destination market before ordering. OmniSol supplies the datasheet and test report at the RFQ stage.
Product Overview
The NSPV Mini Connector is a small-format PV connector for BIPV and EC1A junction boxes and tight cable routing, built to IEC 62930/IEC 62852, rated 1000V DC with an IP67 UV-resistant housing, ≤0.25 mΩ contact resistance and corrosion-resistant metal contacts over a -40°C to +90°C range. Its compact body suits 4mm–6mm cable diameters where a full-size connector will not fit.
Select it by cable diameter and the junction-box format it must mate with. When sourcing, give us your cable diameter (4–6mm) and the BIPV/EC1A box type at RFQ so we confirm compatibility; the mini connectors consolidate with junction boxes, PV cable and other BOS items in one OmniSol shipment.
Applications
Solar string wiring
Module-to-module connections
BIPV junction wiring
Field maintenance and replacement
Certifications & Compliance
Frequently Asked Questions
What cable diameters does the mini connector accept?
4mm to 6mm cable, rated 1000V DC. Confirm your cable diameter and the junction-box format at RFQ for the matching variant.
What is it typically used with?
BIPV junction boxes and EC1A junction boxes, and any space-constrained routing where a standard connector is too large.
Which standards apply?
It is built to IEC 62930/IEC 62852, with IEC documentation supplied at RFQ.
Can it mate with standard MC4 connectors?
No — the mini format is not intermateable with standard MC4. Use matching NSPV mini pairs; tell us your existing connector at RFQ.
