NSPV Solar 1000VDC Panel Connectors
Why Quality Matters?
Sourced from New PV (NSPV brand) and offered through OmniSol as supplier of record. Request current pricing, MOQ, certificates and lead time at RFQ.
RFQ inputs
Quantity, destination, certificate needs.
QC proof
Inspection and document review before shipping.
Export ready
Packaging and mixed-container planning.
Procurement Snapshot
Commercial details are confirmed by SKU, quantity and destination at RFQ stage.
RFQ checklist
Send these points with your inquiry for faster pricing.
Documents to confirm
Often sourced together
Technical Data
Specification values for buyer review and RFQ matching
| Voltage Rating | 1000V DC |
|---|---|
| Current Rating | Up to 30A (varies by cable size) |
| Material | PPE/PA housing, corrosion-resistant contacts |
| Protection Class | IP67 |
| Temperature Range | -40°C to +90°C |
| Cable Compatibility | 4mm² to 10mm² |
| Certifications | IEC 62852, TÜV, CE |
| Supplier | New PV (NSPV) |
Procurement & BOM Notes
How NSPV Solar 1000VDC Panel Connectors is sourced
OmniSol sources NSPV Solar 1000VDC Panel Connectors factory-direct as part of the PV Connector family, quoted against your project quantity, destination port and voltage rating (1000V DC). Pricing and lead time are confirmed by SKU and order size at the RFQ stage, and OmniSol can propose a current-equivalent option if the exact variant is unavailable, so the line stays on schedule.
BOM fit
NSPV Solar 1000VDC Panel Connectors is matched to the project's PV cable and string layout, so it is quoted with the cable size and per-string quantity rather than as a generic spare. It consolidates with cable, branch connectors and protection in one shipment under a single QC report.
Certification check
Confirm the NSPV Solar 1000VDC Panel Connectors certificates — CE, IEC, TÜV — and the IP rating for the destination market before ordering. OmniSol supplies the datasheet and test report at the RFQ stage.
Product Overview

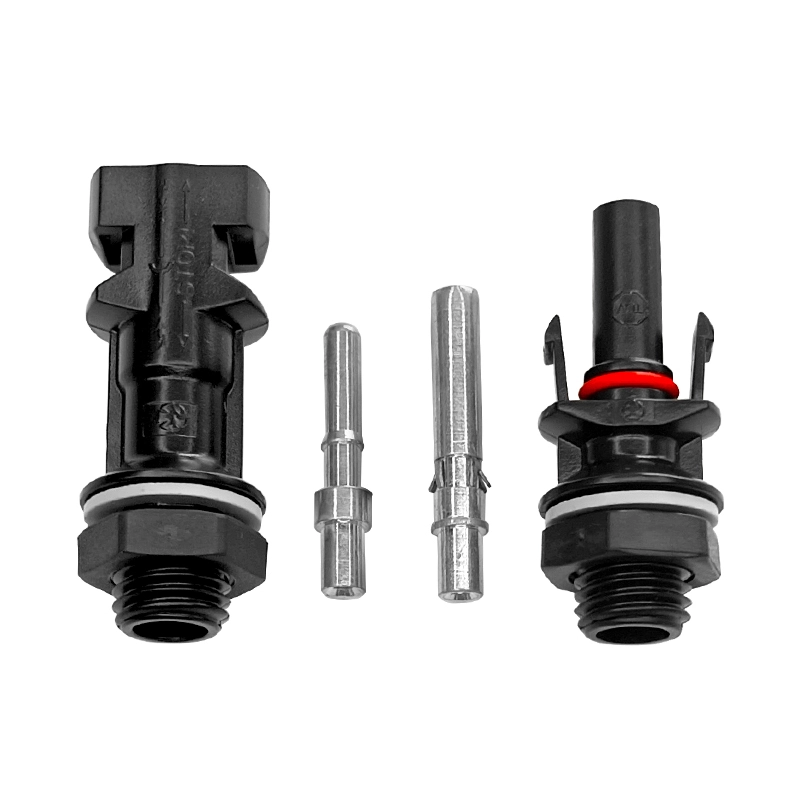

The NSPV 1000V DC Panel Connector is a universal-compatible PV connector for combiner-box and inverter connections, built to IEC 62852, rated 1000V DC and up to 30A with an IP67 PPE/PA housing, corrosion-resistant contacts and a -40°C to +90°C range. Its multi-connect design integrates with a wide range of panels and components without proprietary lock-in.
Select it by conductor size and string voltage (use the 1500V variant for higher-voltage arrays). When sourcing, specify your cable cross-section (4mm²–10mm²) and system voltage at RFQ so we ship the correct contact; include it in your connector BOM with matching PV cable and DC protection for one consolidated OmniSol shipment.
Applications
Solar string wiring
Module-to-module connections
Combiner box input wiring
Field maintenance and replacement
Certifications & Compliance
Frequently Asked Questions
What is the voltage and current rating?
Rated 1000V DC and up to 30A. For 1500V strings, use the NSPV 1500V connector instead — tell us your system voltage at RFQ.
What cable sizes does it accept?
Standard solar cable from 4mm² to 10mm². Confirm your conductor size at RFQ for the matching contact.
Which standard does it meet?
It is built to IEC 62852 and supplied with TÜV/CE/IEC documentation at RFQ.
Can it be mated with other MC4-type brands?
Cross-brand mating is not certified and can compromise sealing and warranty. Use matching NSPV pairs; flag cross-mating at RFQ.
