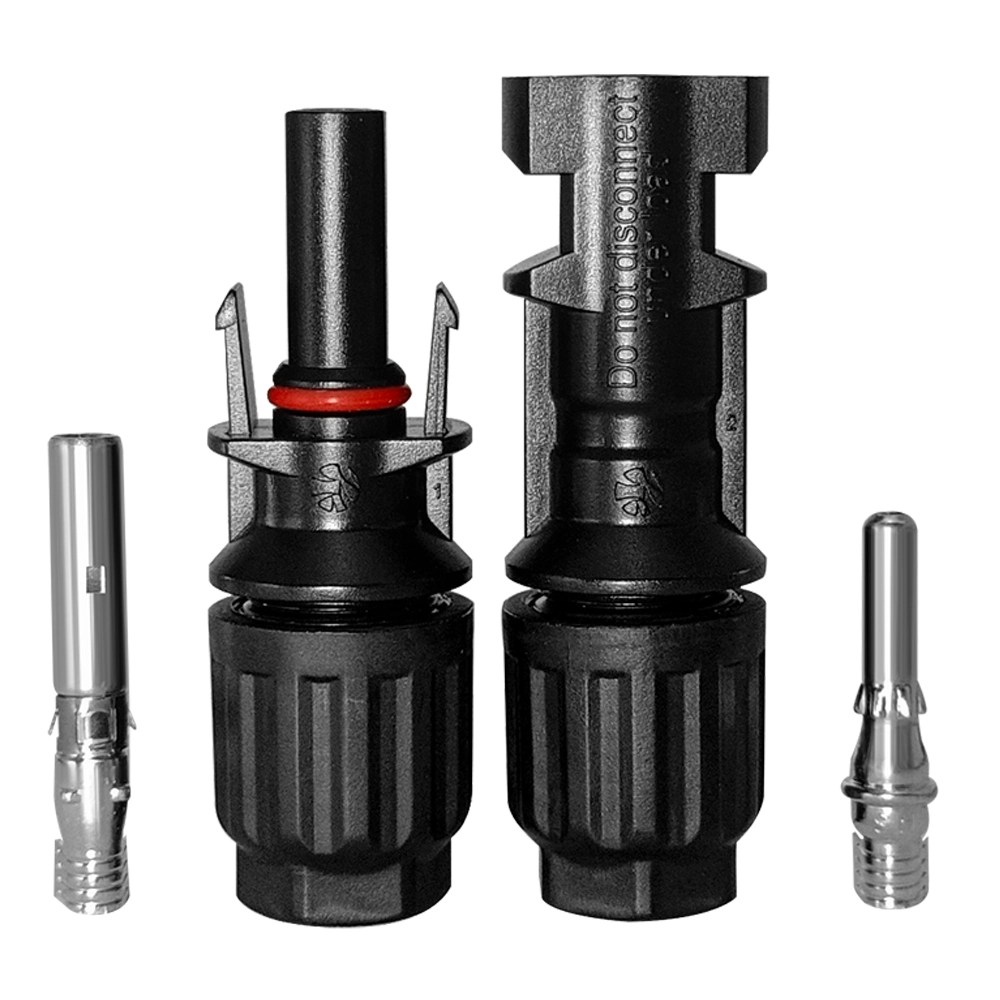

NSPV IP67 Solar 1000VDC Cable Connector
Why Quality Matters?
Sourced from New PV (NSPV brand) and offered through OmniSol as supplier of record. Request current pricing, MOQ, certificates and lead time at RFQ.
RFQ inputs
Quantity, destination, certificate needs.
QC proof
Inspection and document review before shipping.
Export ready
Packaging and mixed-container planning.
Procurement Snapshot
Commercial details are confirmed by SKU, quantity and destination at RFQ stage.
RFQ checklist
Send these points with your inquiry for faster pricing.
Documents to confirm
Often sourced together
Technical Data
Specification values for buyer review and RFQ matching
| Rated Voltage | 1000V DC |
|---|---|
| Rated Current | 30A |
| Test Voltage | 8kV (50Hz, 1 minute) |
| Rated Impulse Voltage | 16kV |
| Insulation Material | PPE/PA (UL94-V0) |
| Contact Material | Copper with tin plating |
| Temperature Range | -40°C to +85°C |
| Cable Cross-Section | 2.5–10mm² (14–8AWG) |
| Supplier | New PV (NSPV) |
Procurement & BOM Notes
How NSPV IP67 Solar 1000VDC Cable Connector is sourced
OmniSol sources NSPV IP67 Solar 1000VDC Cable Connector factory-direct as part of the PV Connector family, quoted against your project quantity, destination port and rated voltage (1000V DC). Pricing and lead time are confirmed by SKU and order size at the RFQ stage, and OmniSol can propose a current-equivalent option if the exact variant is unavailable, so the line stays on schedule.
BOM fit
NSPV IP67 Solar 1000VDC Cable Connector is matched to the project's PV cable and string layout, so it is quoted with the cable size and per-string quantity rather than as a generic spare. It consolidates with cable, branch connectors and protection in one shipment under a single QC report.
Certification check
Confirm the NSPV IP67 Solar 1000VDC Cable Connector certificates — IEC, UL — and the IP rating for the destination market before ordering. OmniSol supplies the datasheet and test report at the RFQ stage.
Product Overview
The NSPV 1000V DC Cable Connector is a male/female PV connector built to IEC 62852, rated 1000V DC and 30A with an IP67 PPE/PA body (UL94-V0), tin-plated copper contacts and ≤0.25mΩ contact resistance. An 8kV test voltage and 16kV rated impulse voltage give margin against switching and lightning transients across a -40°C to +85°C range.
It accepts 2.5–10mm² (14–8AWG) cable, with nut-cap locking (0.8–1.0Nm) and 50N insertion/withdrawal force. When sourcing, specify your cable cross-section and system voltage at RFQ so we supply the correct contact and crimp guidance; include it in your connector BOM with matching PV cable and DC protection for one consolidated OmniSol shipment.
Applications
Solar string wiring
Module-to-module connections
Combiner box input wiring
Field maintenance and replacement
Certifications & Compliance
Frequently Asked Questions
What cable sizes does it accept?
2.5–10mm² (14–8AWG), rated 1000V DC and 30A. Confirm your conductor size at RFQ for the matching contact and crimp tool.
What transient margin does it have?
8kV test voltage and 16kV rated impulse voltage, suiting outdoor strings exposed to switching and lightning transients.
Which certifications does it carry?
Built to IEC 62852 with IEC/UL documentation supplied at RFQ.
Can it be mated with other connector brands?
Cross-brand mating is not certified and can void the IP67 rating and warranty. Use matching NSPV pairs; flag cross-mating at RFQ.
