NSPV DC 1500V Solar Panel Connectors
Why Quality Matters?
Sourced from New PV (NSPV brand) and offered through OmniSol as supplier of record. Request current pricing, MOQ, certificates and lead time at RFQ.
RFQ inputs
Quantity, destination, certificate needs.
QC proof
Inspection and document review before shipping.
Export ready
Packaging and mixed-container planning.
Procurement Snapshot
Commercial details are confirmed by SKU, quantity and destination at RFQ stage.
RFQ checklist
Send these points with your inquiry for faster pricing.
Documents to confirm
Often sourced together
Technical Data
Specification values for buyer review and RFQ matching
| Voltage Rating | DC 1500V |
|---|---|
| Current Rating | Up to 70A (depending on cable size) |
| Material | High-grade PPE/PA |
| Protection Class | IP68 |
| Cable Range | 2.5–10mm² (AWG 14–8) |
| Temperature Range | -40°C to +90°C |
| Certifications | IEC 62852, TÜV, RoHS |
| Supplier | New PV (NSPV) |
Procurement & BOM Notes
How NSPV DC 1500V Solar Panel Connectors is sourced
OmniSol sources NSPV DC 1500V Solar Panel Connectors factory-direct as part of the PV Connector family, quoted against your project quantity, destination port and voltage rating (DC 1500V). Pricing and lead time are confirmed by SKU and order size at the RFQ stage, and OmniSol can propose a current-equivalent option if the exact variant is unavailable, so the line stays on schedule.
BOM fit
NSPV DC 1500V Solar Panel Connectors is matched to the project's PV cable and string layout, so it is quoted with the cable size and per-string quantity rather than as a generic spare. It consolidates with cable, branch connectors and protection in one shipment under a single QC report.
Certification check
Confirm the NSPV DC 1500V Solar Panel Connectors certificates — IEC, TÜV, RoHS — and the IP rating for the destination market before ordering. OmniSol supplies the datasheet and test report at the RFQ stage.
Product Overview

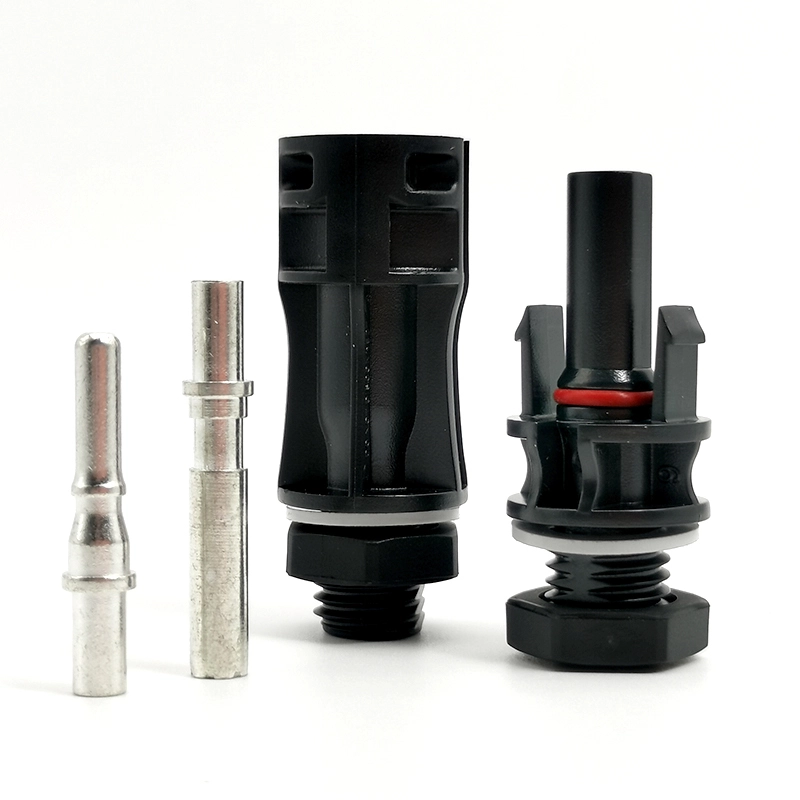

The NSPV DC 1500V Solar Panel Connector is a male/female PV connector for combiner-box and inverter terminations, built to IEC 62852, rated DC 1500V and up to 70A depending on conductor size, with an IP68 PPE/PA housing and copper tinned terminals (hollow or solid). It accepts a wide conductor range and uses a plug-and-play locking mechanism rated -40°C to +90°C.
Select it by conductor cross-section and string voltage. When sourcing, specify your cable size (2.5–10mm² / AWG 14–8 for the standard contact, larger on request) and system voltage at RFQ so we supply the correct current variant and terminal type; include it in your connector BOM with matching PV cable and DC protection for a single consolidated OmniSol shipment.
Applications
Solar string wiring
Module-to-module connections
Combiner box input wiring
Field maintenance and replacement
Certifications & Compliance
Frequently Asked Questions
What current and voltage does it support?
Rated DC 1500V and up to 70A depending on conductor size. Confirm your cable cross-section at RFQ and we match the contact and current variant.
What conductor sizes does it accept?
Standard contacts suit 2.5–10mm² (AWG 14–8); larger terminal options are available. Tell us your conductor size and whether you need hollow or solid terminals.
Which standard does it meet?
It is built to IEC 62852 and supplied with TÜV/IEC/RoHS documentation at RFQ.
Can it mate with other connector brands?
Cross-brand mating is not certified and can void the IP68 rating and warranty. Use matching NSPV pairs and flag cross-mating at RFQ.
