NSPV Brand Solar Cable Connector to O Ring Terminal PV Solution
Why Quality Matters?
Sourced from New PV (NSPV brand) and offered through OmniSol as supplier of record. Request current pricing, MOQ, certificates and lead time at RFQ.
RFQ inputs
Quantity, destination, certificate needs.
QC proof
Inspection and document review before shipping.
Export ready
Packaging and mixed-container planning.
Procurement Snapshot
Commercial details are confirmed by SKU, quantity and destination at RFQ stage.
RFQ checklist
Send these points with your inquiry for faster pricing.
Documents to confirm
Often sourced together
Technical Data
Specification values for buyer review and RFQ matching
| Type | Cable Connector to O-Ring Terminal assembly |
|---|---|
| Voltage Rating | 1500V DC |
| Cable Range | 2.5mm² to 16mm² (14-8AWG) |
| IP Rating | IP68 |
| Material | XLPE insulation, tinned copper conductors |
| Supplier | New PV (NSPV) |
Procurement & BOM Notes
How NSPV Brand Solar Cable Connector to O Ring Terminal PV Solution is sourced
OmniSol sources NSPV Brand Solar Cable Connector to O Ring Terminal PV Solution factory-direct as part of the PV Connector family, quoted against your project quantity, destination port and type (Cable Connector to O-Ring Terminal assembly). Pricing and lead time are confirmed by SKU and order size at the RFQ stage, and OmniSol can propose a current-equivalent option if the exact variant is unavailable, so the line stays on schedule.
BOM fit
NSPV Brand Solar Cable Connector to O Ring Terminal PV Solution is matched to the project's PV cable and string layout, so it is quoted with the cable size and per-string quantity rather than as a generic spare. It consolidates with cable, branch connectors and protection in one shipment under a single QC report.
Certification check
Confirm the NSPV Brand Solar Cable Connector to O Ring Terminal PV Solution certificates — IEC, TÜV — and the IP rating for the destination market before ordering. OmniSol supplies the datasheet and test report at the RFQ stage.
Product Overview

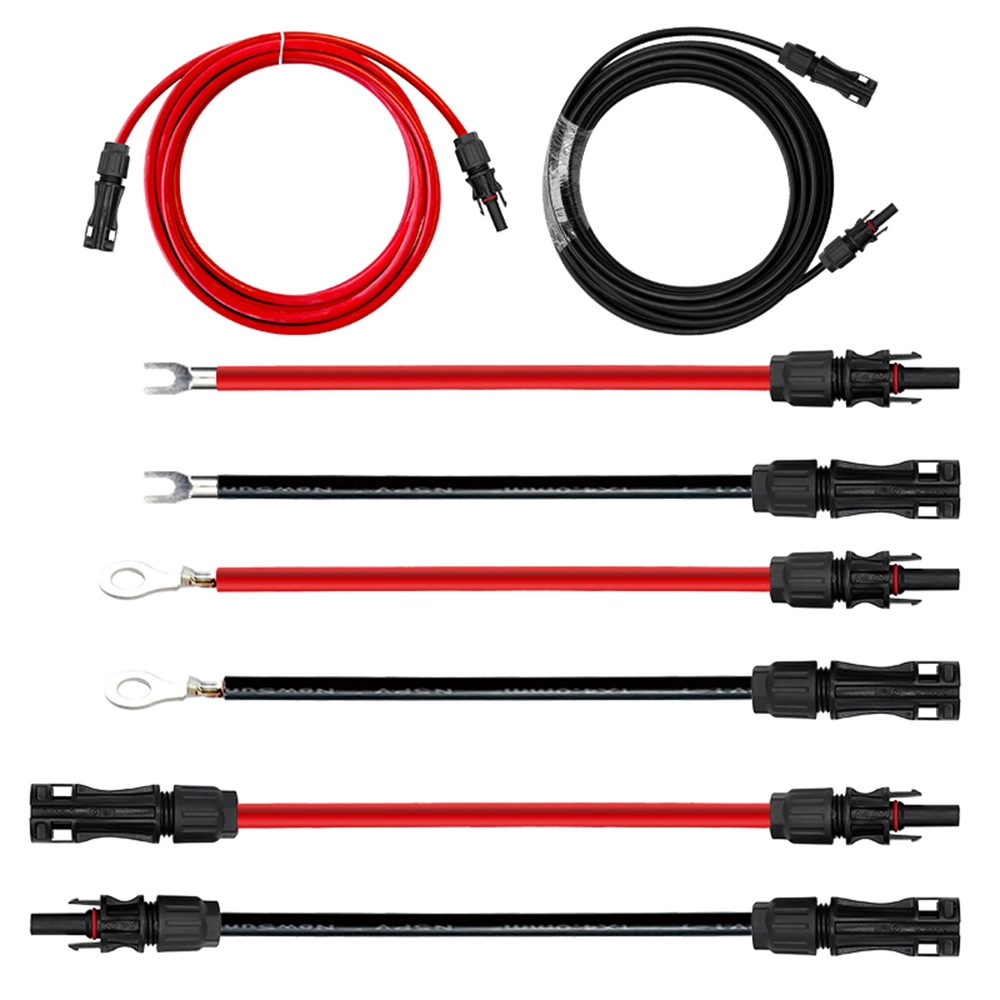

The NSPV Cable Connector to O-Ring Terminal assembly terminates a PV connector at one end and a ring (O-ring) lug at the other, for connecting to battery terminals, busbars, earth bars or equipment studs. It uses XLPE-insulated cable with an IP68 connector, rated 1500V DC, for 2.5mm² to 16mm² (14–8AWG) conductors; the connector is built to IEC 62852 and the cable to IEC 62930.
Select it by cable cross-section, lead length and ring-lug stud size (e.g. M6/M8). When sourcing, give us the connector type, cable size, lead length and stud diameter at RFQ so we build the correct assembly; it consolidates with PV cable, connectors and earthing lugs in one OmniSol shipment.
Applications
Battery/busbar terminations
Grounding terminal connections
Cable-to-lug assemblies
Field maintenance and replacement
Certifications & Compliance
Frequently Asked Questions
What is a cable connector to O-ring terminal used for?
It links a PV connector to a ring-lug termination — for battery terminals, busbars, earth bars or equipment studs — giving a sealed, ready-made lead instead of field-terminating both ends.
What cable sizes and stud sizes are available?
Cable from 2.5–16mm² (14–8AWG); the ring lug is made to your stud size (e.g. M6/M8). Confirm both, plus lead length, at RFQ.
What is the rating?
Rated 1500V DC with IP68 sealing at the connector end and XLPE-insulated, tinned-copper cable.
Which standards apply?
Connector to IEC 62852 and cable to IEC 62930, with TÜV/IEC documentation at RFQ.
Related Products
More components from the same application category.
PV004 PV Connector Series
PV004 connector family with 13 catalog variants.
PV005 PV Connector Series
PV005 connector family with 8 catalog variants.

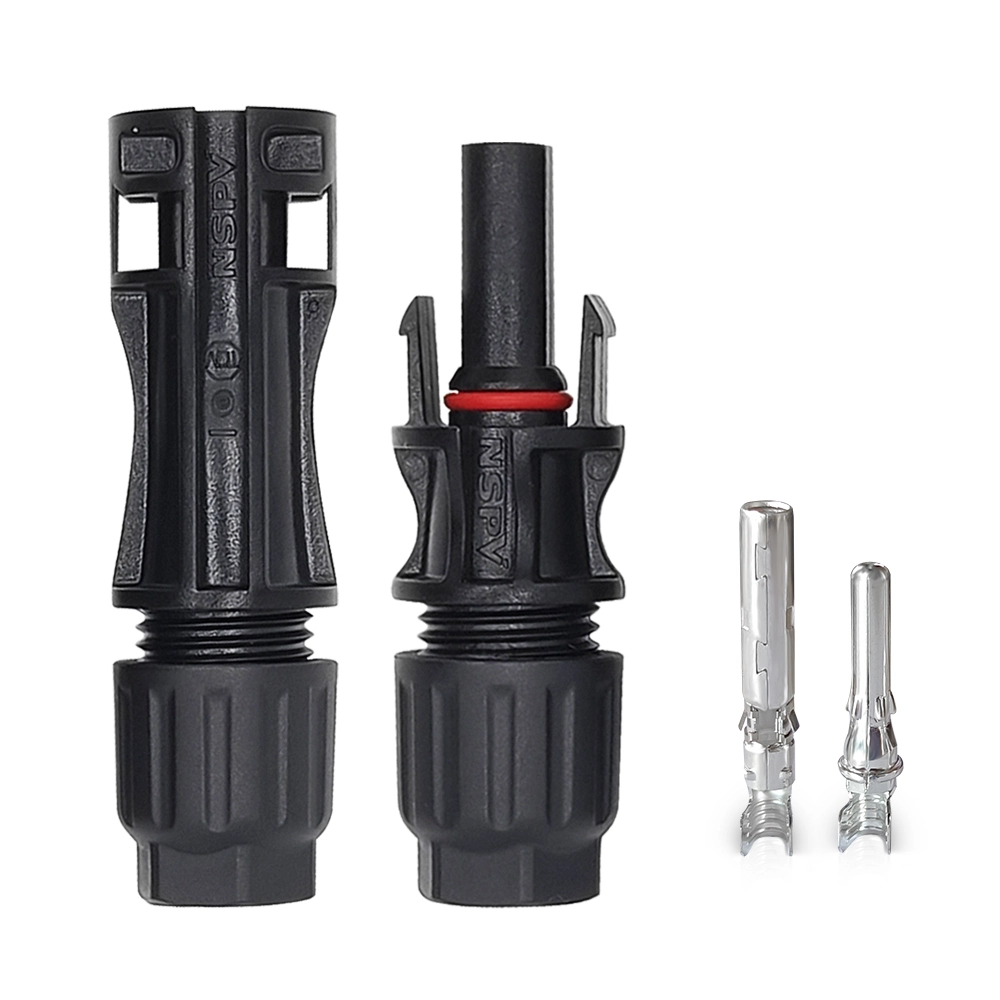

NSPV Solar Cable Connector 1500V DC IP68
