Connecting solar panels to a water pump
The correct connection depends on the motor and its approved controller, not just a matching voltage label. Establish the architecture and protection requirements before selecting equipment.
This is a procurement and design checklist, not a step-by-step wiring or installation tutorial.
Updated
Qualified electrical design and installation required
Have a qualified electrician, licensed where required locally, design, install and commission the system using the exact equipment manuals and applicable local requirements. PV circuits can remain energised in daylight. Do not connect, disconnect or test live equipment using this overview.

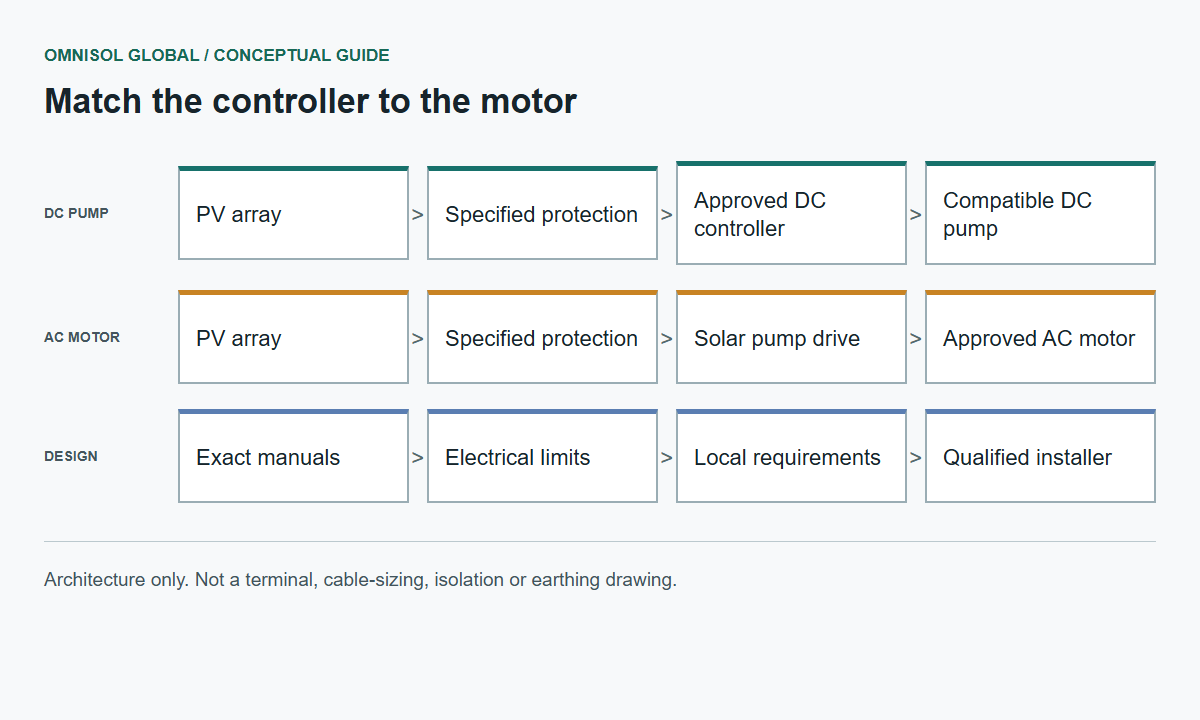

Two architectures to distinguish
| Architecture | Compatibility to establish |
|---|---|
| DC pump with approved controller | Match the exact motor and controller combination, permissible PV input range, current limits, sensor interfaces and protection requirements. A nominal motor voltage is not a PV string design. |
| AC motor with solar pump drive | Confirm motor type, phase, rated current and voltage, permitted frequency range and suitability for the proposed drive. Match the array to the drive input requirements. |
| Optional grid, generator or battery backup | Use only an approved integration design with appropriate switching and protection. Never parallel sources or feed an unapproved input. |
What the design submission should contain
| Record | What the reviewer needs |
|---|---|
| Equipment schedule | Exact panel, controller, motor and pump identifiers and the corresponding manual revisions. |
| Array calculations | Site-temperature voltage checks, operating range, current limits and design-month energy assumptions. |
| Electrical design | Project-specific drawings, cable calculations, isolation, overcurrent and surge protection, earthing and any local compliance evidence. |
| Hydraulic design | Required flow and head, source yield, model curve, pipework and dry-run and tank-level protection scope. |
| Installation responsibilities | Named qualified installer, local approvals where applicable and clear separation between supplied equipment and site work. |
Acceptance records, not a wiring recipe
Request signed inspection and commissioning records from the installer. They should identify the installed equipment, approved drawings, electrical test results, configured protections, functional test outcomes and measured flow at recorded head and operating conditions. Agree the acceptance criteria before installation; one sunny test does not establish annual yield.
Keep the as-built documentation and protection settings with the handover pack. Any unresolved alarm or deviation needs a documented disposition before normal operation.
OmniSol supplies equipment; the installer owns site execution
We can help define equipment scope and request compatibility documents. Local electrical design, installation, testing and commissioning must be performed by qualified professionals. This page does not replace their assessment or the manufacturer instructions.
Solar panel and pump connection questions
How do you connect a solar panel to a water pump?
Use a manufacturer-approved architecture for the exact pump motor and solar input. A DC pump needs its specified compatible controller; an AC motor normally needs a compatible solar pump drive. A qualified electrician must design and install the protection, isolation, cabling, earthing and controls. This page describes architecture, not terminal-by-terminal instructions.
Can I connect a solar panel directly to a water pump?
Do not assume compatibility from a voltage label. Direct connection is only appropriate where the pump manufacturer explicitly permits it and all input and protection requirements are met. Otherwise use the specified controller. Panel voltage varies with operating conditions, and a motor rating alone does not define acceptable PV input.
Can an existing AC water pump run on solar?
Possibly, after checking the motor type, phase, voltage, current, insulation, drive compatibility and required duty. A qualified designer must also check controller input limits and the proposed array. Not every motor is suitable for every variable-frequency drive.
How many solar panels are needed for a water pump?
There is no universal panel count or array-to-motor ratio. Required energy and duty determine capacity, while module and controller electrical limits constrain the string layout. The design must account for site temperatures, irradiance, losses and manufacturer requirements.
Does a controller stop the system safely when the tank is full?
Only if the correct sensing, controller inputs, configuration and protection are supplied and commissioned. Specify tank-level control, low-water protection, approved restart behaviour and a documented functional test in the purchase and installation scope.
