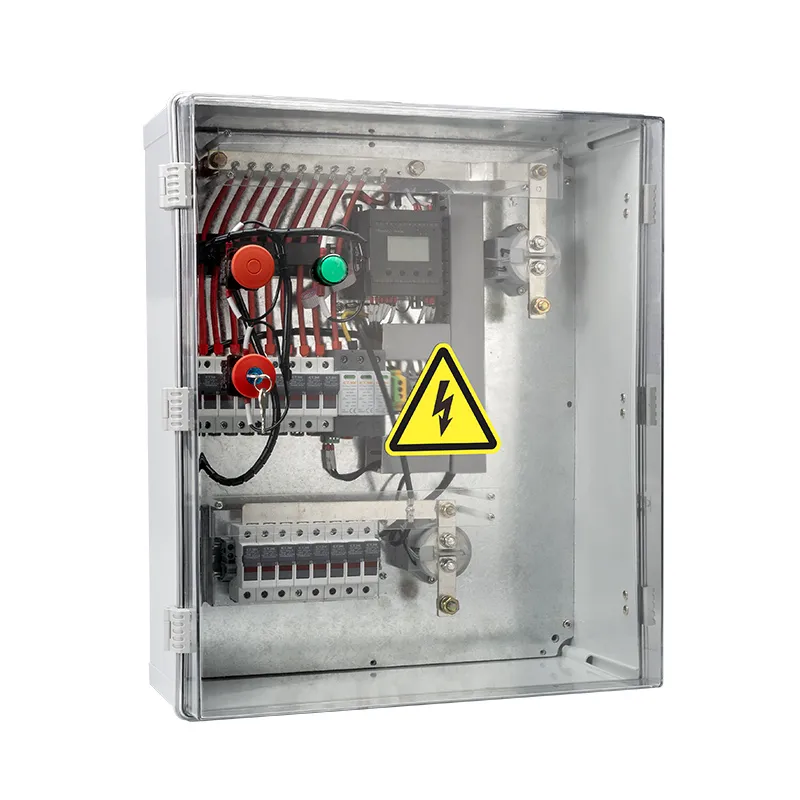

EKDB10 Series IP65 Plastic Waterproof Distribution Box for Industrial & Commercial Applications
Why Quality Matters?
Grouped by product family for cleaner RFQ selection: one page shows the available variant SKUs and key specification choices without creating duplicate product pages.
Variant SKU:
RFQ inputs
Quantity, destination, certificate needs.
QC proof
Inspection and document review before shipping.
Export ready
Packaging and mixed-container planning.
Procurement Snapshot
Commercial details are confirmed by SKU, quantity and destination at RFQ stage.
RFQ checklist
Send these points with your inquiry for faster pricing.
Documents to confirm
Often sourced together
Technical Data
Specification values for buyer review and RFQ matching
| Product Family ID | OS-ETK-EKDB10 |
|---|---|
| Variant SKU Count | 8 |
| Supplier | ETK |
| Supplier Model | EKDB10 |
| Product Type | Waterproof Distribution Box / Waterproof Distribution Box Variant |
| Rated Current | 125A maximum |
| Protection Degree | IP65 |
| Dimensions | 296×230×121.5 / 380×230×121.5 / 296.5×390.5×131.5 / 296.6×550.6×131.5 / 128×200×103.5 / 164×200×103.5 / +1 more |
| Frame Current | 4,6,9,13,18,26,39 |
| Frame Size / Ways | 4,6,9,13,18,26,39 |
| Ground Bar Holes | 10 / 2×10 / 6 |
| Ik Rating | IK08 |
| Layers | Single / Double / Triple |
| Material | Polycarbonate |
| Neutral Bar Holes | 10 / 2×10 / 6 |
| Protection Degree | IP65 |
| Rated Current | 125A maximum |
| Standard | IEC60529, IEC62262:2021, IEC60695-2-10:2013 |
| Terminal | Y/N |
| Ways | 4,6,9,13,18,26,39 / 13 / 18 / 26 / 39 / 4 / +2 more |
Procurement & BOM Notes
How EKDB10 Series IP65 Plastic Waterproof Distribution Box for Industrial & Commercial Applications is sourced
OmniSol sources EKDB10 Series IP65 Plastic Waterproof Distribution Box for Industrial & Commercial Applications factory-direct as part of the Waterproof Distribution Box family, quoted against your project quantity, destination port and product family id (OS-ETK-EKDB10). Pricing and lead time are confirmed by SKU and order size at the RFQ stage, and OmniSol can propose a current-equivalent option if the exact variant is unavailable, so the line stays on schedule.
BOM fit
EKDB10 Series IP65 Plastic Waterproof Distribution Box for Industrial & Commercial Applications sits between the array and the inverter, so it is specified with the string count, system voltage and protection layout of the project. It ships consolidated with cable, connectors and the rest of the electrical BOS, under one QC report and one document set.
Certification check
Confirm the EKDB10 Series IP65 Plastic Waterproof Distribution Box for Industrial & Commercial Applications certificates — IEC60529, IEC62262:2021, IEC60695-2-10:2013 — the breaking capacity and any market-specific listing before ordering. OmniSol supplies the datasheet, component brand list and inspection photos.
Product Overview
IP65 plastic waterproof distribution box for industrial and commercial AC distribution in outdoor locations. Lightweight polycarbonate construction with IP65 rating for dust and water jet protection — suitable for inverter AC output junction, auxiliary power distribution, and outdoor switchgear arrangements in PV plants and storage facilities.
Polycarbonate enclosures resist UV degradation and corrosion better than steel in coastal and humid environments. The clear lid option (where available) allows visual inspection of internal components without opening the enclosure.
Eight size variants cover boards from compact 4-way junction boxes to 24-way sub-distribution boards for commercial solar AC circuits. The IP65 ABS enclosure integrates mounting ears and pre-punched cable gland entry zones — confirm the correct variant size against the combined footprint of your MCBs, RCDs, and bus bars before ordering to avoid field modification.
Applications
AC-side distribution
Outdoor PV electrical enclosures
Commercial low-voltage distribution
Solar support circuits
Certifications & Compliance
Frequently Asked Questions
Is polycarbonate suitable for direct outdoor installation?
Yes — polycarbonate distribution boxes are specifically designed for outdoor use. UV-stabilized polycarbonate withstands prolonged sun exposure without cracking or discoloring. IP65 rating provides dust and water jet protection for most outdoor installation environments.
What DIN rail space is available inside EKDB10?
Confirm internal DIN rail length and usable depth from the product datasheet. Share the list of internal components (MCB count, RCCB, SPD, terminals) at RFQ and we verify they fit within the available rail space.
