Solar Y Cable M510H Series Solution (5-in-1)
Why Quality Matters?
Sourced from New PV (NSPV brand) and offered through OmniSol as supplier of record. Request current pricing, MOQ, certificates and lead time at RFQ.
RFQ inputs
Quantity, destination, certificate needs.
QC proof
Inspection and document review before shipping.
Export ready
Packaging and mixed-container planning.
Procurement Snapshot
Commercial details are confirmed by SKU, quantity and destination at RFQ stage.
RFQ checklist
Send these points with your inquiry for faster pricing.
Documents to confirm
Often sourced together
Technical Data
Specification values for buyer review and RFQ matching
| Model | M510H (5-in-1) |
|---|---|
| Voltage Rating | 1500V DC |
| Cable Range | 2.5mm² to 16mm² (14-8AWG) |
| IP Rating | IP68 |
| Material | XLPE insulation, tinned copper conductors |
| Supplier | New PV (NSPV) |
Procurement & BOM Notes
How Solar Y Cable M510H Series Solution (5-in-1) is sourced
OmniSol sources Solar Y Cable M510H Series Solution (5-in-1) factory-direct as part of the Y Cable Harness family, quoted against your project quantity, destination port and model (M510H (5-in-1)). Pricing and lead time are confirmed by SKU and order size at the RFQ stage, and OmniSol can propose a current-equivalent option if the exact variant is unavailable, so the line stays on schedule.
BOM fit
Solar Y Cable M510H Series Solution (5-in-1) is matched to the project's PV cable and string layout, so it is quoted with the cable size and per-string quantity rather than as a generic spare. It consolidates with cable, branch connectors and protection in one shipment under a single QC report.
Certification check
Confirm the Solar Y Cable M510H Series Solution (5-in-1) certificates — IEC, TÜV — and the IP rating for the destination market before ordering. OmniSol supplies the datasheet and test report at the RFQ stage.
Product Overview
The NSPV M510H is a 5-in-1 Y cable harness that branches from a central junction to connect five modules into one input on a charge controller or inverter. It is rated 1500V DC with IP68 protection and tinned-copper conductors from 2.5mm² to 16mm² (14–8AWG); connectors are built to IEC 62852 and the cable to IEC 62930.
Pre-assembled harnesses reduce cable clutter and field joints. When sourcing, confirm the lead lengths, cable cross-section and system voltage at RFQ so we build the M510H to your layout; include it in your connector BOM alongside matching PV cable, branch/fuse connectors and DC protection for one consolidated OmniSol shipment.
Applications
Series/parallel module string wiring
Rooftop and ground-mount arrays
Pre-assembled harness installations
Reducing on-site wiring time
Certifications & Compliance
Frequently Asked Questions
How many strings does the M510H combine?
Five module outputs into one, rated 1500V DC, in a Y configuration that branches from a central junction.
What cable sizes are supported?
Tinned-copper PV cable from 2.5–16mm² (14–8AWG), IP68 sealed. Confirm your size and lead lengths at RFQ.
Can it be mated with other connector brands?
Cross-brand mating is not certified and can void the IP68 rating and warranty. Use matching NSPV pairs; flag cross-mating at RFQ.
Which standards apply?
Connectors to IEC 62852 and cable to IEC 62930, with TÜV/IEC documentation at RFQ.
Related Products
More components from the same application category.
NSPV Solar Wiring Y Cable Harness Series & Connectors Solution
The NSPV Solar PV Panel Y Cable Harness series connected solution is a premium choice for solar inst...
NSPV M610H Solar 6-in-1 Y Cable Harness Solution
The M610H 6-in-1 Y Cable Harness is part of NSPV's comprehensive range of solar cable assemblies, ta...

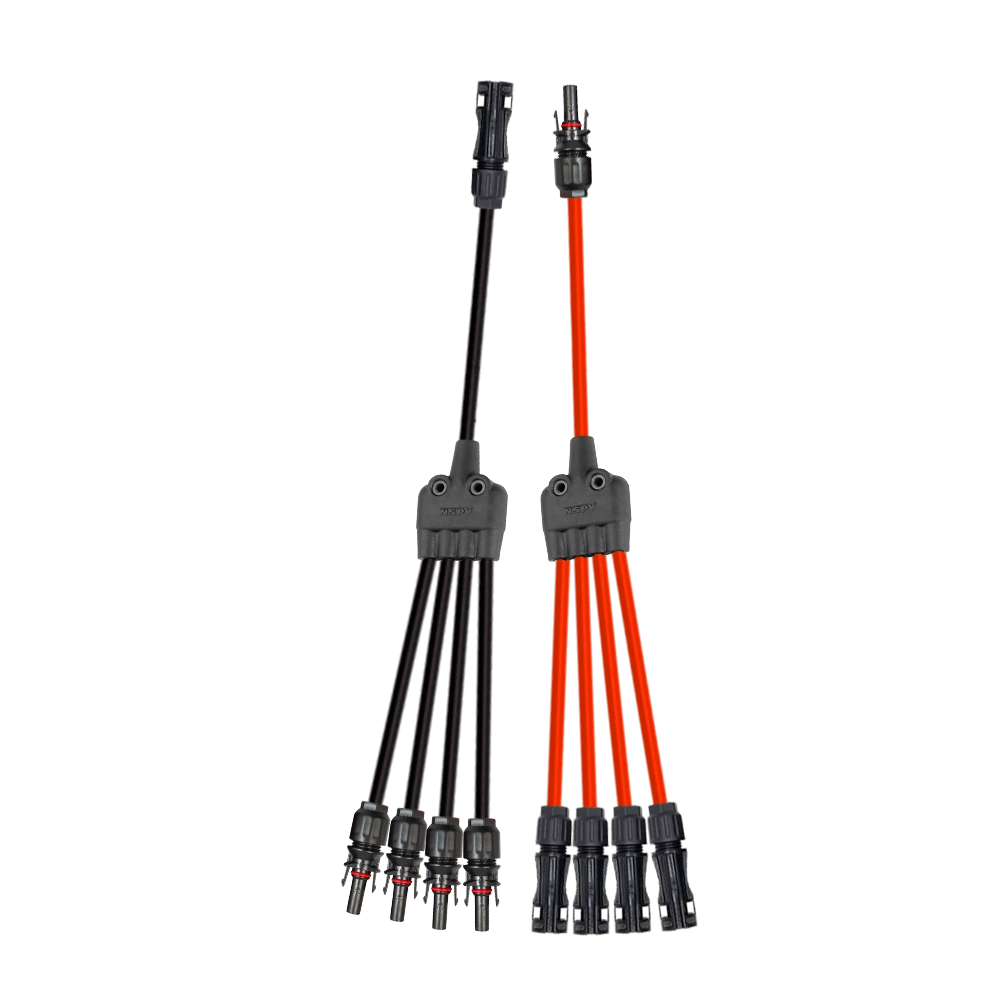

NSPV M420H & M410H 4-in-1 4-in-2 Y Cable Harness Solution
